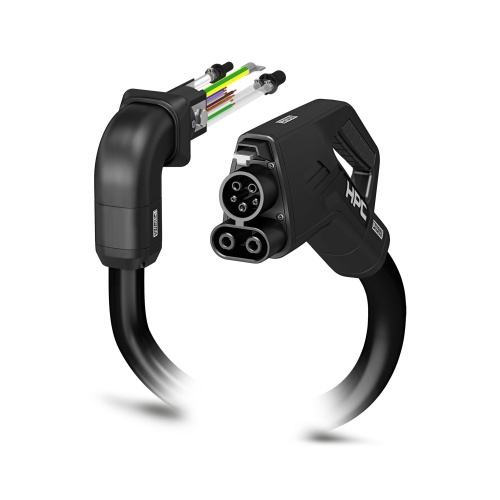

Phoenix Contact 1089931 DC charging cable EV-T1HPCC-DC500A-5,0M50ECBK11R
Normally In Stock
Code: 173968
Phoenix Contact 1089931 EV-T1HPCC-DC500A-5,0M50ECBK11R ,Plastic,EVM-1 incordance with EN 50620 DC charging cable *NON-CANCELLABLE, NON-RETURNABLE*
Condition: New
Usually ships Same Day or Next Day *NON-CANCELLABLE, NON-RETURNABLE*
$5231.26
Sale Price
$4359.38
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1089931 The CHARX cable is a professional-grade, CCS type 1, HPC DC charging cable designed for use in high-power charging applications. It boasts a maximum continuous rating of up to 500 A and a boost mode capacity of up to 700 A, with a voltage rating of 1000 V DC. The cooled vehicle charging connector and cooled cable provide reliable and efficient charging performance. With a length of 5m, the cable is black in color, straight in design, and features an adjustable panel feed-through and variable-speed fan for optimal airflow. The Phoenix Contact CONTACT logo marks the product as meeting international safety standards, including SAE J1772 and IEC 62196-3-1, making it suitable for charging electric vehicles with direct current (DC).
Specifications
Component
Cable
Connector Amperage
2 Amp
Connector Amperage
500 Amp
Connector Material
Plastic
Connector protection
IP54
Manufacturer
Phoenix Contact
Connector Material
EVM-1 Incordance With EN 50620
Sub Component
DC Charging Cable
Features
Complete product range
The right charging cable for every application, from the carport to the charging park
Ultra-fast HPC charging, with temporary power up to 500 kW
Convenient handling due to the ergonomic design
Available with your logo on request - for consistent branding of your charging station
Developed and produced in accordance with the IATF 16949 automotive standard and ISO 9001
Additional safety thanks to integrated leakage sensors and a wear indicator in the cable sheath
Convenient communication interfaces via CAN bus and digital output
Maintenance-friendly replacement of the mating face frame without draining the coolant
Integrated strain relief of single-core wires directly in the panel feed-through
Pre-assembled busbar screw connection for straightforward connection of the customer’s busbars or cable lug solutions
