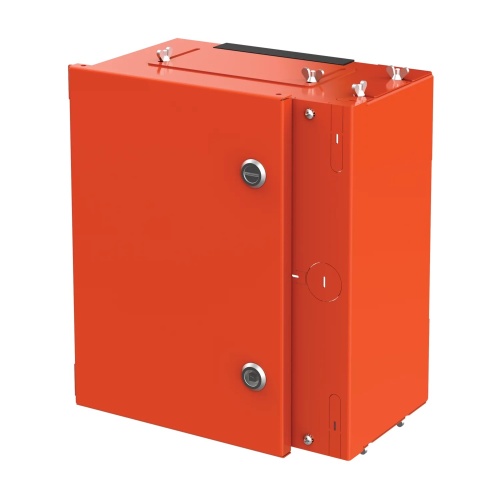

Hoffman AID1412 Small, Internal Disconnect Shield, 13.5x12x6.5in, Safety Orange, Steel
Normally In Stock
Code: 231442
Hoffman AID1412 Body construction includes flanges and joints to meet UL Type 1 construction requirementsQuarter-turn slotted latchSpring-loaded slam latch with 7mm square insert for automatic latching110-degree door stop to prevent incidental contactGland plate top and bottom for easy wire installationWing nuts for gland plates for tool-less installationGround stud on door and bodyOpen back with mounting holes on back flanges for mounting on main enclosure sub-panelKnock-outs for variable-depth or cable-operated disconnect switchesSymmetrically designed to use with left-hand or right-hand disconnect switchesHardware kit includes: panel mounting screws, key for spring-loaded slam latch, grommet to cover knockout for variable-depth disconnect switches, and installation instructions (DOES NOT INCLUDE BACK PANEL)
Condition: New
Usually ships Same Day or Next DayDOES NOT INCLUDE BACK PANEL
$375.18
Sale Price
$312.65
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Hoffman AID1412 Body construction includes flanges and joints to meet UL Type 1 construction requirementsQuarter-turn slotted latchSpring-loaded slam latch with 7mm square insert for automatic latching110-degree door stop to prevent incidental contactGland plate top and bottom for easy wire installationWing nuts for gland plates for tool-less installationGround stud on door and bodyOpen back with mounting holes on back flanges for mounting on main enclosure sub-panelKnock-outs for variable-depth or cable-operated disconnect switchesSymmetrically designed to use with left-hand or right-hand disconnect switchesHardware kit includes: panel mounting screws, key for spring-loaded slam latch, grommet to cover knockout for variable-depth disconnect switches, and installation instructions
Specifications
Enclosure Depth
6.5"
Enclosure Width
12"
Enclosure Height
13.5"
Manufacturer
Hoffman
Enclosure Composition
Steel
Component
Internal Disconnect Shield
Features
Gland plate top and bottom for easy wire installation
Spring-loaded slam latch with 7mm square insert for automatic latching
110-degree door stop to prevent incidental contact
Wing nuts for gland plates for tool-less installation
Quarter-turn slotted latch
Body construction includes flanges and joints to meet UL Type 1 construction requirements
Ground stud on door and body
Hardware kit includes: panel mounting screws, key for spring-loaded slam latch, grommet to cover knockout for variable-depth disconnect switches, and installation instructions
Symmetrically designed to use with left-hand or right-hand disconnect switches
Knock-outs for variable-depth or cable-operated disconnect switches
Open back with mounting holes on back flanges for mounting on main enclosure sub-panel
