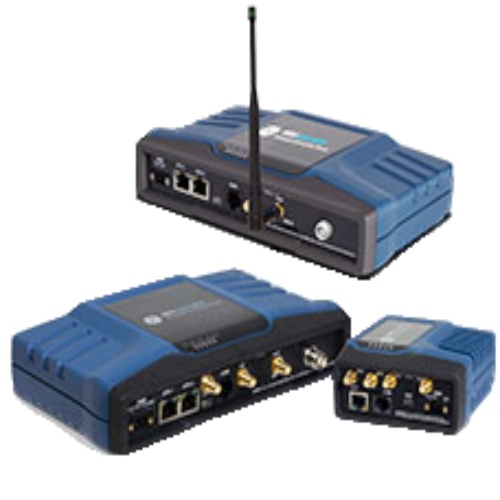

MDS Orbit MCR 900 Unlicensed-Cellular 3G GSM World 2 Ethernet 1 Serial (Din Rail Mount)
Normally In Stock
Code: 25276
MDS MXNCU91N4GYNNS2FKDUNN Orbit (Din Rail Mount) MCR Radio 900 MHz Unlicensed with Cellular 3G GSM World Managed Connected Router. 902-928 MHz Radio with 2 Ethernet Ports and 1 Serial Port. Up to 30 mile range.
Condition: New
Usually ships Same Day or Next Day$2332.90
Sale Price
$2120.82
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
MDS Orbit (Din Rail Mount) MCR 902-928 MHz Unlicensed Radio with Cellular 3G GSM World. MXNCU91N4GYNNS2FKDUNN Managed Connected Router MCR Series. Includes 2 Ethernet and 1 Serial port. Operating power of 10-60 VDC up to 1 watt. USB for configuration, status monitoring, local and secure single point connection. Range of up to 30 miles line of site. Low latency and scalable data throughput rates of 125 Kbps, 250 Kbps, 500 Kbps, 1 Mbps, and 1.25 Mbps. Access Point, remote, store and forward, point to multipoint and point to point. Works as Serial Terminal Server with protocols including Modbus and DNPv3 supported and serial traffic from SCADA and telemetry data encapsulated in TCP and UDP to transport across MDS Orbit (Din Rail Mount) wireless or wired networks. The MDS Orbit (Din Rail Mount) devices are capable of routing across any of its network interfaces including the local Ethernet ports, WiFi, WiMAX, cellular, and 900MHz ISM. Operating temperature of -40F-158F. (1.75"H x 8"W x 4.8"D) Antenna ports for 902-928 MHz: TNC, WiFi: RP-SMA, Cellular SMA. Ethernet ports: RJ-45, Serial ports: RS-232/RS-485 and RJ45.
Specifications
Radio 2 Type
Cellular
Radio Capability
Point To Multipoint
Radio Voltage
12 VDC
Radio Voltage
24 VDC
Radio Carrier Power
1 Watt
Radio Data Protocol
Serial
Radio Temperature Range Low
-40F
Radio Temperature Range High
158F
Radio Encryption
AES-128
Radio Housing
Enclosed
Radio UL Approval
UL Approved
Radio Type
900 Mhz Ethernet Unlicensed
Radio Range
30 Miles
Radio Data Protocol
Ethernet
Radio Voltage
48 VDC
Radio Serial Ports
1 Serial Port
Radio RF Connector
TNC Female
Radio Data Interface
RJ45
Radio Mounting
Din Rail Mount
Radio Frequency Range
902-928 Mhz
Radio Data Rate
1.25 Mbps
Radio Ethernet Ports
2 Ethernet Ports
2nd Radio Frequency Range
Cellular
Radio Antenna Ports
1 Antenna Port
Manufacturer
MDS
Line
Orbit MCR
Component
Radio
Features
The MDS Orbit is offered in three different packaging options.
The OCR (Outdoor-Connect Router) is designed to provide security and strength in harsh weather environments.
The ECR (Edge-Connect Router), is the smallest of the options, designed for space limited installations.
The MCR (Multiservice-Connect Router) provides an industry unique advantage of dual radio uplinks which help minimize network downtime with capabilities such as signal quality based smart auto failover and other redundancy features.
Customer hybrid communications networks are supported with popular use cases such as licensed narrowband and LTE connectivity in one solution.
A foundational building block for the MDS Orbit Platform is security, a core competency area for GE Vernova, and a critical consideration and requirement for evaluating wireless communications systems for customers across all industry types and geographies
By securing the device, the user, and the network with open standards-based algorithms and protocols, the MDS Orbit Platform provides the necessary functions and tools to enable utilities to meet cyber security requirements and regulations.
GE Vernova’s MDS Orbit Platform has been designed with flexibility to allow use of different communication technologies to meet specific bandwidth, range, frequency, and geographic requirements of industrial applications. The CPU horsepower of an MDS Orbit device can be scaled to meet the application, network, and security performance requirements of a broad range of utility applications.
Several features have been designed into the MDS Orbit Platform to provide ease of use for customers, reducing the learning curve for new users, and reducing the time required for network deployment, troubleshooting and maintenance.
