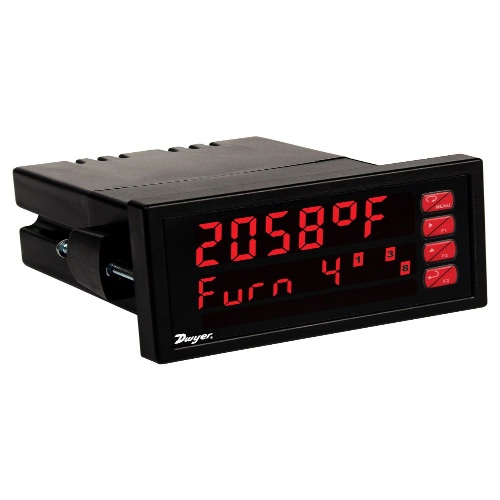

Dwyer LTI-121 Temperature Panel Meter
Normally In Stock
Code: 572414
Dwyer LTI-121 - Temperature panel meter, 85-265 VAC, 2 relays, 4-20 mA transmitter.
Condition: New
Usually ships Same Day or Next Day$1049.63
Sale Price
$874.69
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer LTI-121 Temperature Panel Meter is a reliable and versatile device for measuring temperature. With an operating range of -4 to 149°F and a storage range of -40 to 185°F, it can handle various environments. It can be powered by a wide range of voltages and offers excellent display with up to five-digit resolution. The 4-20 mA output ensures accurate readings, and the NEMA 4X rated front panel ensures durability. With multiple input options and a variety of switch ratings, it offers flexibility for different applications. The programming software is included, making it easy to use.
Specifications
(Instrument-Sensor) Supply Voltage
12-24 VDC
(Instrument-Sensor) Temperature Range
Storage: -40 - 185°F/-40 - 85°C
(Instrument-Sensor) Supply Voltage
85-265 VAC
(Instrument-Sensor) Supply Voltage
90-265 VDC
Component
Temperature Panel Meter
(Instrument-Sensor) Temperature Range
Operating: -4 - 149°F/-20 - 65°C
Manufacturer
Dwyer Instruments
Features
1/8 DIN Digital Panel Temperature Meter with NEMA 4X, IP65 Front
J, K, T, E, R, S, B, N, C Thermocouples
100 or 1000 Ω Platinum, 10 Ω Copper, 120 Ω Nickel RTDs
Optional Isolated 4-20 mA Output Turns the Meter into a Temperature Transmitter
1° or 0.1° Resolution
Averages up to 10 RTD Sensors
Automatic Cold Junction Compensation
Dual-Line 6-Digit Display, 0.6" (15 mm) & 0.46" (12 mm)
2 or 4 Relays with Interlocking Capability + Isolated 4-20 mA Output Options
Free PC-Based, Onboard, Panel Meter Pro USB Programming Software
No Assembly Required
Operating Temperature Range: -20 to 65°C (-4 to 149°F)
UL & C-UL Listed. E160849
508 Industrial Control Equipment
Input Power Options: 85-265 VAC / 90-265 VDC or 12-24 VDC / 12-24 VAC
Programmable Display, Function Keys & Digital Input
External 4-Relay & Digital I/O Expansion Modules
RS-232 & RS-485 Serial Communication Options with Modbus RTU
Password Protection
Wide Assortment of NEMA 4X Enclosures for up to Ten Meters
3-Year Warranty
