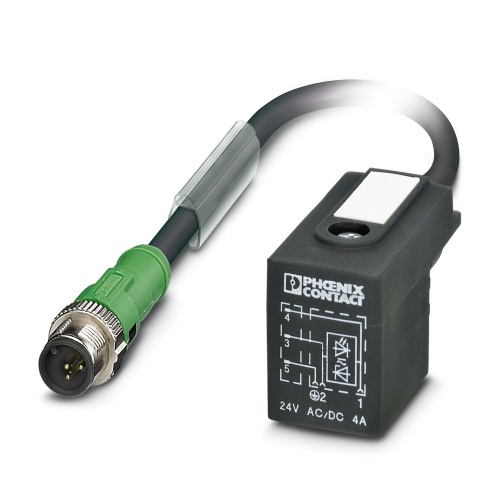

Phoenix Contact 1435137 Sensor/actuator cable SAC-3P-MS/ 0,3-PUR/BI-1L-Z SCO
Normally In Stock
Code: 76355
Phoenix 1435137 PUR,Gray,Black,Halogen-Free 0.3 m Plug Straight M12 3-position A - standard Zinc die-cast, nickel-plated Sensor/actuator cable
Condition: New
Usually ships Same Day or Next Day$25.39
Sale Price
$21.16
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

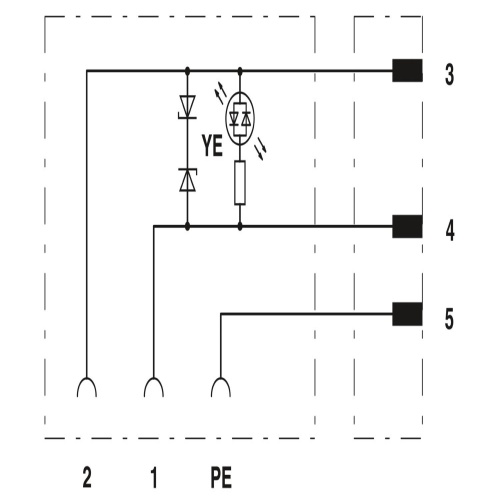

Phoenix Contact 1435137 The sensor/actuator cable is a PUR halogen-free, black-gray RAL 7021 cable with a straight M12 SPEEDCON plug and is coded as A on the Valve connector BI (11mm). The cable has one LED and is equipped with a Z diode, measuring just 0.3 meters in length.
Specifications
Cable Coding
A - Standard
Cable Head 1 Design
Plug Straight M12
Cable Knurl Material
Zinc Die-Cast
Cable Knurl Material
Nickel-Plated
Cable Number of Positions
3-Position
Cable Number of Valve Plugs
1
Cable Valve Connector Design
Valve Connector BI
Status Indicator
Status Indicator
Manufacturer
Phoenix Contact
Component
Sensor-Actuator Cable With Valve Connector
Cable Length
0.3 M
Cable Material
PUR
Cable Material
Halogen-Free
Features
Our standard: robust halogen-free PUR cable
Save time, thanks to installation with SPEEDCON fast locking system
Convenient: increased machine availability thanks to quick and easy diagnostics
Easy and safe: 100 % electrically tested plug-in components
