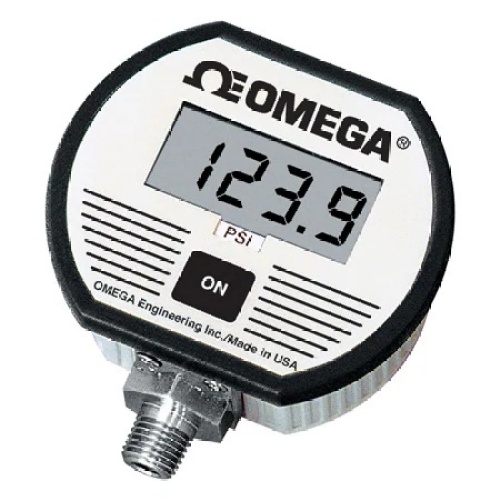

Omega DPG1000DAR-3KG-3N Digital Pressure Gauge
Normally In Stock
Code: 805596
Omega DPG1000DAR-3KG-3N Digital Pressure Gauge
Condition: New
Usually ships Same Day or Next Day$1336.64
Sale Price
$1113.87
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Digital Pressure Gauge, 0 psi to 3000 psi, ± 0.25 %, 1/4 " NPT Male, 4 Digit, AC/DC Powered, SPDT 1 A 24 Vdc/0.5 Vac, Lo/Lo Normal Action, DPG1000 Series, Each
Specifications
Component
Digital Pressure Gauge
Manufacturer
Omega Engineering
Features
Dual Alarm and Signal Alarm plus Analog Output
± 0.25% Test Gauge Accuracy
316 Stainless Steel Wetted Parts
Loop Test Function
Accuracy Class0.1% to 0.25%
Burst Pressure4x Full Scale
Cable Length0.9 m
Cable Length Note0.9 m (3') 2-conductor 22 AWG cable (none required on DPG1000B)
Display Segment Height13 mm
Display TypeLCD
Display Type NoteLCD, 13 mm (0.5") digit height, 3 readings per second
Enclosure MaterialAluminum
Materials, Wetted316 Stainless Steel
Operating Temperature, Max85 °C
Operating Temperature, Min-20 °C
Process Connection Size1/4 in
Process Connection TypeNPT Male
Process Temperature, Max70 °C
Process Temperature, Min0 °C
Proof Pressure2x Full Scale
Storage Temperature, Max95 °C
Storage Temperature, Min-55 °C
Thermal Effects± 0.003% FSO or better, ± 1 least significant digit (includes linearity, hysteresis, repeatability)
NIST traceable certificate included
Weight255 g
Weight NoteApprox 255 g (9 oz)
Wire Gauge22 AWG
