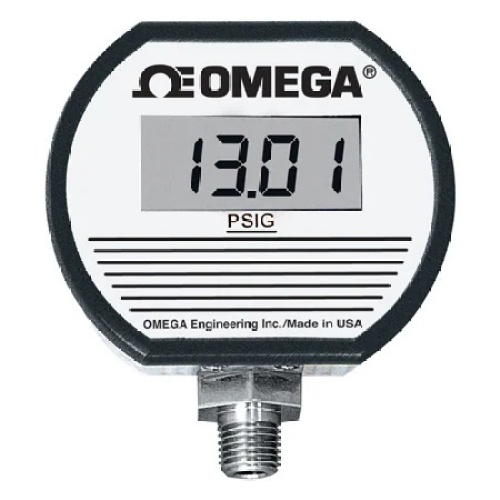

Omega DPG1001L-1KG Digital Pressure Gauge with NIST Certification
Normally In Stock
Code: 805615
Omega DPG1001L-1KG Digital Pressure Gauge with NIST Certification
Condition: New
Usually ships Same Day or Next Day$1265.58
Sale Price
$1054.65
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Digital Pressure Gauge with NIST Certification, High Accuracy, Gauge, 0 psi to 1000 psi, ± 0.1 %, 1/4 " NPT Male, 3.5 Digit, Loop Powered, DPG1001 Series, Each
Specifications
Component
Digital Pressure Gauge
Manufacturer
Omega Engineering
Features
NIST Certification Included
High Accuracy +/- 0.10% Test Gauge
316 Stainless Steel Wetted Parts
Easy-to-Read 3 1/2 Digit LCD Display
Accuracy Class0.1% to 0.25%
Accuracy Detail± 0.10% FSO or better, ± 1 least-significant digit (includes linearity, hysteresis, repeatability)
NIST certificate included
Battery Size and TypeAlkaline AA
Burst Pressure4x Full Scale
Display Segment Height13 mm
Display TypeLCD
Display Type NoteLCD, 13 mm (0.5") digit height, 3 readings per second
Materials, Wetted316 Stainless Steel
Number of Batteries2
Operating Temperature, Max85 °C
Operating Temperature, Min-20 °C
Pressure Accuracy± 0.1 %
Pressure, Min0 psi
Pressure TypeGauge
Process Connection Size1/4 in
Process Connection TypeNPT Male
Process Temperature, Max70 °C
Process Temperature, Min0 °C
Proof Pressure2x Full Scale
Storage Temperature, Max95 °C
Storage Temperature, Min-55 °C
Weight255 g
Weight NoteApprox 255 g (9 oz)
