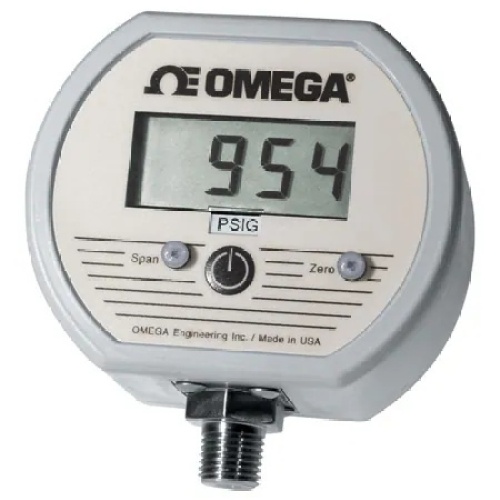

Omega DPG1100L-100G Industrial Digital Pressure Gauge
Normally In Stock
Code: 805619
Omega DPG1100L-100G Industrial Digital Pressure Gauge
Condition: New
Usually ships Same Day or Next Day$887.02
Sale Price
$739.18
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Industrial Digital Pressure Gauge, 0 psi to 100 psi, ± 0.25 %, 1/4 " NPT Female, 3.5 Digit, Loop Powered, NEMA 4X Enclosure, DPG1000 Series, Each
Specifications
Manufacturer
Omega Engineering
Component
Industrial Digital Pressure Gauge
Features
NEMA-4X Enclosure
± 0.25% Test Gauge Accuracy
316 Stainless Steel Wetted Parts
Easy-to-Read 3½ Digit LCD Display
Accuracy Class0.1% to 0.25%
Accuracy Detail± 0.25% FSO or better, ± 1 least significant digit (includes linearity, hysteresis, repeatability)
Burst Pressure4x Full Scale
Cable Length0.9 m
Cable Length Note0.9 m (3') 2-conductor 22 AWG cable (none required on DPG1000B)
Controls and LocationDisplay zero/span, non-interactive, ± 15% range
test calibration level, 0 to 100% range
top-accessible, multiturn potentiometers
loop 4 mA and 20 mA internal potentiometers
Display Segment Height13 mm
Display TypeLCD
Display Type NoteLCD, 13 mm (0.5") digit height, 3 readings per second
Electrical Output4 to 20 mA
Enclosure MaterialAluminum
Materials, Wetted316 Stainless Steel
Number of Digits3.5
Operating Temperature, Max85 °C
Operating Temperature, Min-20 °C
Pressure Accuracy± 0.25 %
Process Connection Size1/4 in
Process Connection TypeNPT Male
Process Temperature, Max70 °C
Process Temperature, Min0 °C
Proof Pressure2x Full Scale
Storage Temperature, Max95 °C
Storage Temperature, Min-55 °C
Supply Power NoteBattery Note:None
Thermal Effects± 0.25% FSO or better, ± 1 least significant digit (includes linearity, hysteresis, repeatability)± 1% FS for offset and span, 0 to 70°C (32 to 158°F) typical
± 2% FS for offset and span, 0 to 70°C (32 to 158°F) typical for 3 and 5 psi range
Weight255 g
Weight NoteApprox 255 g (9 oz)
Wire Gauge22 AWG
