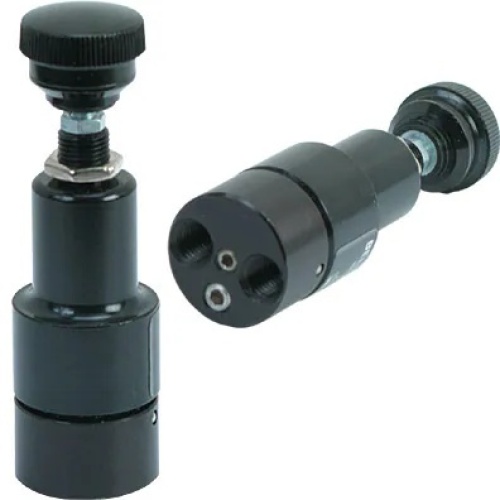

Omega AR91-100 Miniature Pressure Regulator
Normally In Stock
Code: 830449
Omega AR91-100 Miniature Pressure Regulator
Condition: New
Usually ships Same Day or Next Day$99.58
Sale Price
$82.98
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Miniature Pressure Regulator, 1/16 " NPT Female, 0 psig to 100 psig, 250 psig, Anodized Aluminum Body Material, Corrosive Media Type, AR90 Series, Each
Specifications
Manufacturer
Omega Engineering
Component
Miniature Pressure Regulator
Features
Designed for Applications with Limited Space and for Low Flow or Dead-End Service
Small Package Size and Lightweight Construction
Corrosion Resistant Anodized Aluminum Exterior
Excellent Stability and Repeatability
Air Supply Pressure, Min0 psi
Diameter0.875 in
Exhaust Capacity NoteExhaust Capacity (5 psig Above 20 psig Setpoint): 0.1 to 0.3 SCFM (2.8 to 8.5 LPM) typical
Flow Rate NoteFlow Capacity at 100 psig (6.9 bar) Supply and 20 psig (1.4 bar) Outlet: 2.5 SCFM (71 LPM)
Height3.33 in
MaterialsAnodized Aluminum,Plated Steel,Brass,Acetal,Fabric Flurocarbon
Media CompatibilityCorrosive Gases, Corrosive Liquids
MountingPipe or Panel
Pressure TypeGauge
Supply Pressure, Max250 psi
Supply Pressure Sensitivity<0.25 psi
Total Air Consumption3 SCFM
Total Air Consumption NoteTotal Air Consumption @ Maximum Output: 3 SCFH (84.6 LPM)
Volumetric Flow Rate, Max2.5 SCFM
Weight2.2 oz
Width0.875 in
