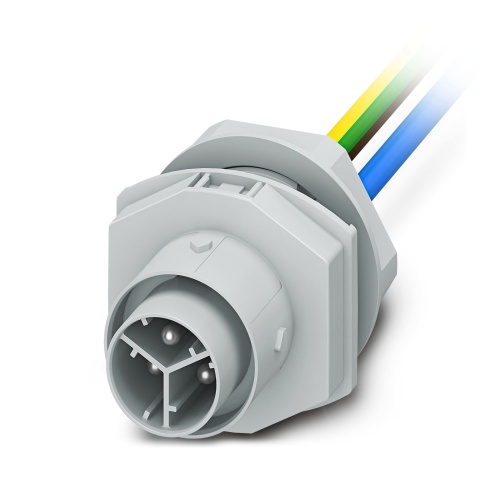

Phoenix Contact 1088701 Panel feed-through IPD W 3P2,5 M 0,5 M25 GY
Normally In Stock
Code: 834401
Phoenix 1088701 Panel feed-through IPD W 3P2,5 M 0,5 M25 GY
Condition: New
Usually ships within 7-14 days. Call for ship time$12.76
Sale Price
$10.63
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1088701 The panel feed-through for connectors falls under the IPD product family and features a single-wire connection method with up to 2 additional positions, supported by an M25 pin. It operates at 450 volts and 17.5 amps, is designed with PA (positive) polarity, has a gray color coding, carries a current rating of 2.5 mm2, and comes in a standard cable length of 0.5 meters.
Specifications
Component
Panel Feed-Through
Manufacturer
Phoenix Contact
Number of Positions
3
Connector Voltage
450 VAC
Features
Easy distribution of power, as components are plugged directly
Simple, time-saving wiring in the field with Push-Lock connection
Reliable installation in harsh environments with IP66, IP68, and IP69K throughout the entire system
Secure, tool-free locking even in particularly difficult installation situations
Fast commissioning with preassembled cable assemblies
