Enclosure Keyboard Shelves & Trays

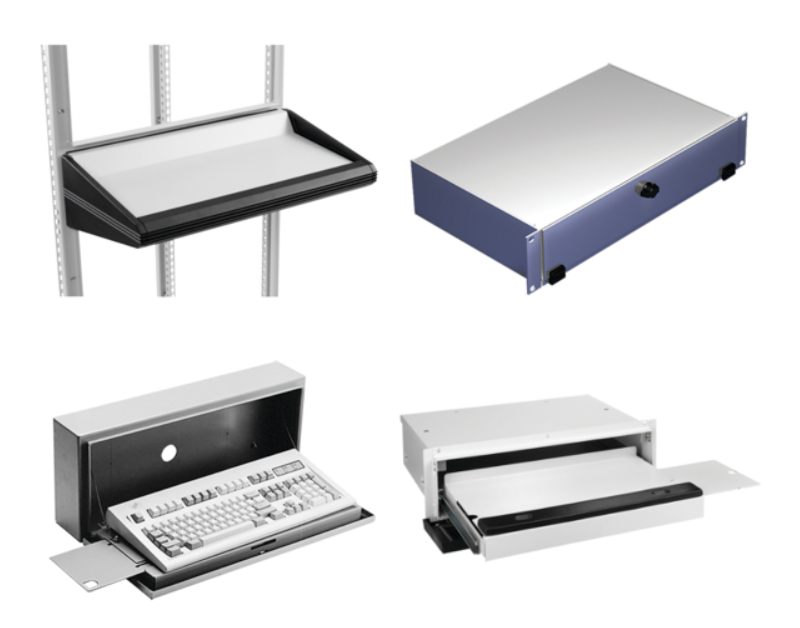

Hoffman A19KBC2B (Brushed Aluminum) Keyboard Compartment for 19-in. Racks, 2 rack units. Provides a convenient way to incorporate a keyboard with other 19-in. rack-mounted equipment. Uses 2 RU of space. Made of light-weight aluminum with brushed finish. Accommodates keyboard up to 16.50-in. (419-mm) wide. Mounting hardware included.

Hoffman CKBC24 CONCEPT Keyboard Box 10.00 x 23.30 x 4.79 inch (HxWxD) fits Max keyboard size of 10.00" x 23.30" x 4.79". Keyboard box is designed to fit on an outside surface of an enclosure to provide a self-contained external Type 4 housing for a keyboard. The box attaches to the enclosure surface with 4 bolts. A large hole and rubber plug are provided for keyboard cord and plug. The hinged cover is supported with flexible cables in the open position. A left and a right mouse tray slides out from under the keyboard mounting surface. VELCRO strips with pressure-sensitive adhesive are supplied to attach a keyboard. An internal mouse storage pracket is provided. The box and cover are 16 gauge steel with ANSI 61 gray polyester powder paint finish. Cover latches with a single quarterturn slotted latch. Optional CONCEPT latches also fit.

Hoffman E19SKBM Pullout Keyboard Tray (Black) with Monitor Shelf 19.90 x 10.24 x 7.00 inch (WxDxH) fits 19" rack, 4 rack units. Mounts to the front and back surfaces of a standard 3-in. open frame rack. Fits full-size keyboard. Includes mouse tray. Extends 10.5 in. (267 mm) beyond front of open frame rack. Keyboard tray slides (Black) out an additional 7 in. (178 mm). Uses 4U rack space. 16 gauge steel with RAL 9005 black polyester powder paint finish. Monitor shelf load rating: 100 lb.

Hoffman ESH19KBM Steel Keyboard/Monitor Shelf (Black Textured) 17.38 x 15.10 x 5.25 inch (WxDxH) fits 19" rack, 3 rack units. Designed to accommodate a monitor and keyboard in an ergonomically engineered design. Shelf mounts to front flange of open-frame rack. Can mount in a cabinet if rack angles are adjusted back for door clearance.

Hoffman ESH23KBM Steel Keyboard/Monitor Shelf (Black Textured) 21.38 x 15.10 x 5.25 inch (WxDxH) fits 23" rack, 3 rack units. Designed to accommodate a monitor and keyboard in an ergonomically engineered design. Shelf mounts to front flange of open-frame rack. Can mount in a cabinet if rack angles are adjusted back for door clearance.

Hoffman P19KBPVT Pivoting Keyboard Shelf with Mouse Tray (Black) 18.89 x 19.25 x 3.50 inch (WxDxH) fits 19" rack, 2 rack units. Mounts either in a cabinet or on a 19-in. open-frame rack. Shelf pulls out and pivots 90 degrees to access full-size keyboard. Shelf allows keyboard to slide between standard rack angles and includes mouse tray.

Hoffman P19KBSM Pull-Out Shelf (Black) for Mini Keyboard 18.31 x 12.42 x 3.50 inch (WxDxH) fits 19" rack, 2 rack units. Pull-Out Shelf for Mini Keyboard mounts either in a cabinet or on a 19-in. open-frame rack and fits a 16.25-in. wide keyboard. When closed, all parts slide between rack angles. Keyboard tray slides out 8.94 in. 16 gauge steel with RAL 9005 black polyester powder paint finish.
