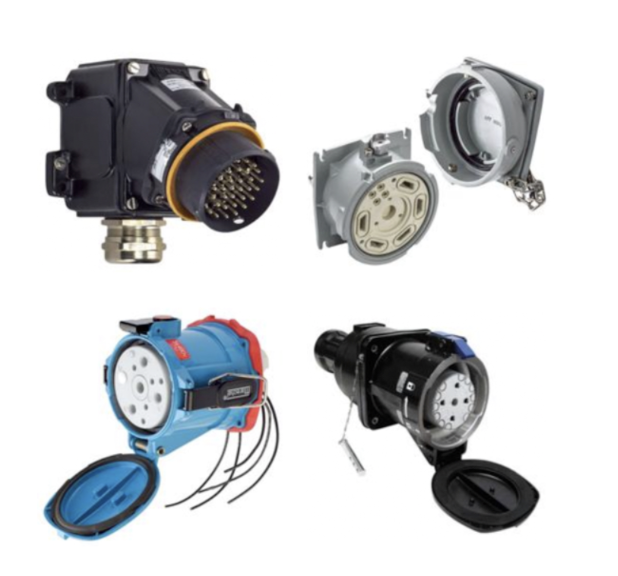

Meltric Industrial Plugs & Receptacles
Meltric is renowned for its plugs and receptacles, emphasizing both electrical and user safety. Their commitment to creating quality electrical connectors is evident in their products, which are designed to ensure reliable electrical connections while prioritizing the user's safety. One of the standout features of Meltric plugs is their ability to function as a disconnect switch, allowing for quick and safe branch circuit disconnect switching.
These industrial plugs and receptacles are particularly useful when there's a need to disconnect electrical equipment or break electrical connections during maintenance or emergencies. The Meltric switch rated plugs and multipin plugs and receptacles offer advantages in both normal and hazardous locations. They can handle high amperage and are designed to quickly connect and disconnect without risking arc flash hazards.
Meltric's dedication to safety is further underscored with their design of plugs that can safely handle direct current applications, even at full load. Their hazardous location plugs are designed to operate safely in environments where there's a high risk of explosions or fires. Another noteworthy feature of some Meltric devices is the spring-loaded silver nickel contacts, ensuring a consistent and secure electrical connection every time.
More Information about Meltric Plugs and Receptacles
Meltric Switch-Rated Plugs and Receptacles
Meltric switch-rated plugs and receptacles can be used to safely make and break electrical connections under load. This is an important feature in industrial settings where equipment may need to be disconnected for maintenance or repair while still under power.
Meltric High-Ampacity Plugs and Receptacles
Meltric high-ampacity plugs and receptacles handle high amperage loads without overheating or suffering from contact degradation. This is achieved through the use of spring-loaded silver-nickel contacts, which provide a low-resistance connection that can handle high amperage loads with ease.
Meltric Multipin Plugs and Receptacles
Meltric multipin plugs and receptacles are designed for use in industrial settings where there is a need for a high number of electrical connections. These connectors are commonly used in applications such as machine tools, robotics, and other automated equipment where multiple signals or power sources are required.
Meltric Hazardous Location Plugs and Receptacles
Meltric hazardous location plugs and receptacles are designed to provide safe and reliable electrical connections in hazardous environments. They are engineered to prevent sparks and excessive heat, are durable and resistant to harsh environmental conditions, and can be quickly and safely disconnected in case of an emergency.
FAQs
What is branch circuit disconnect switching?
A branch circuit disconnect switch is a device that is used to interrupt or disconnect the flow of electricity in a specific branch circuit. One of the primary purposes of a branch circuit disconnect switch is to provide a means of safe maintenance and repair.
What is a switch-rated plug used for?
A switch-rated plug is designed to provide a safe and reliable connection between a device and a power source. It has special contacts that are rated for switching duty, meaning that they are capable of withstanding the arcing and heat generated when the electrical load is switched on and off.
