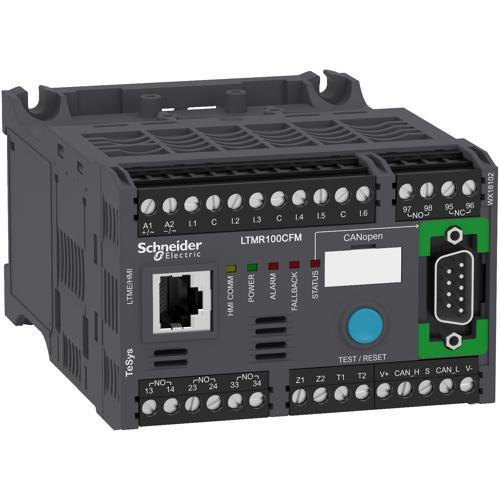

Schneider Electric LTMR100CFM Motor Management, TeSys T, motor controller IEC Smart Overload, CANopen, 6 logic inputs, 3 relay logic outputs, 5 to 100A, 100 to 240 VAC
Normally In Stock
Code: 104206
Schneider LTMR100CFM 100-240 V AC 50/60 Hz CANopen Motor controller -4-140 °F (-20-60 °C 690 V EN/IEC 60947-1, 690 V CSA C22.2 No 14, 690 V UL 508 Control circuit connector 1 0.00-0.00 in² (0.25-2.5 mm² AWG 24-AWG 14flexible with cable end, Control circuit connector 1 0.00-0.00 i
Condition: New
Normally Stocked$1242.64
Sale Price
$1035.53
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Motor Management, TeSys T, motor controller, CANopen, 6 logic inputs, 3 relay logic outputs, 5 to 100A, 100 to 240 VAC
Specifications
Starter Voltage
100-240 VAC
Component
IEC Overload Relay
Sub Component
TeSys T Smart Overload Relay
Manufacturer
Schneider Electric
Features
TeSys T is a motor management system that provides full motor monitoring, control, and protection when used with short circuit protection and a contactor
It manages most critical processes while reducing downtime and increasing productivity as well as predicts what will happen in the process, as it accurately monitors current, voltage, and power over a wide range
This motor management system is also a flexible system that supports six communication protocols which are Modbus™, CANopen, DeviceNet™, Profibus™, Ethernet/IP, and Modbus/TCP
TeSys T motor management system consist of several components which include the LTMR controller, the expansion module, HMI and software along with several accessories
The LTMR controller is the main component of the system that manages the basic functions
This includes the measurement of the ground current, motor temperature, three phase current of the motor, the controller also includes logic inputs and outputs which is used in fault management
The expansion module is directly connected to the controller and provides additional inputs as well as measure the voltage between the phases which allow the controller the monitor additional functions
TeSys T is highly reliable and has a very long product life thanks to a state-of-the-art component selection, to the all in one design and to the advanced electronic protection
TeSys T can be integrated in many different types of harsh environment such as dusty atmospheres, marine applications, high vibration applications and corrosive atmospheres and is used in Metal/Mining/Mineral, Oil & Gas, Water Wastewater
This is a TeSys T LTMR controller that measure current range of 5-100A with a supply voltage of 100-240 Vac and uses CANopen as the communication protocol
This controller measures temperature, phase current, imbalance current, average current and earth-fault current
The dimensions of this device are 61 mm (H) X 91 mm (W) X 122.5 mm (D) and it weighs 0.53 kg
Controller has the following certifications: UL, CSA NOM, ATEX, BV, EAC, RINA, LROS, DNV, ABS, GL, KERI, RMRoS, C-Tick and CCC.
