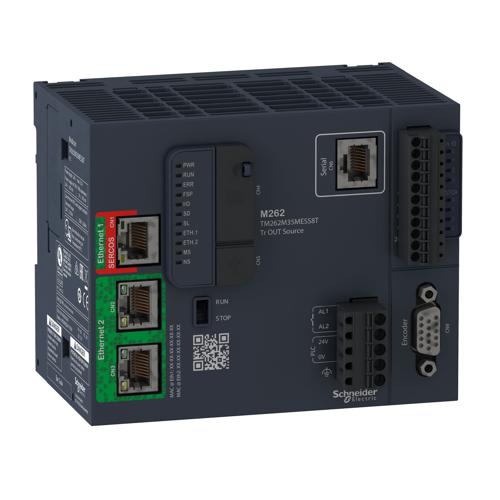

Schneider Electric TM262M35MESS8T Motion Controller M262, 3ns/instruction, 16 axes, Ethernet
Normally In Stock
Code: 111015
Schneider TM262M35MESS8T 8 4 transistor fast output Motion controller 4, discrete input fast input IEC 61131-2 Type 1 24 V Transistor External encoder 5/24 V DC no encoder power supply 32 MB program RAM, 32 MB OS/website RAM, 192 MB system memory RAM 24 V DC - 15-20 % removable spring terminal block, removable spring terminal block for connecting the 24 V DC power supply USB type mini B, EtherNet port1 Ethernet 1 RJ45, EtherNet port2 / switch Ethernet 2 2 RJ45, Serial link RJ45 Top hat type TH35-15 rail IEC 60715, Top hat type TH35-7.5 rail IEC 60715, plate or panel with fixing kit Ethernet IP/Modbus TCP, Sercos III, serial link, Modbus RTU and ASCII, HTTP, HTTPS IP20 Logic/motion controller - Modicon M262 0.5 A transistor output Q0-Q3, 0.5 A fast output Q0-Q3 Sink or source With PWR 1 LED green/red, RUN 1 LED green/red, ERROR (fault 1 LED green/red, Stop forced 1 LED green/red, I/O erro
Condition: New
Normally Stocked$6897.46
Sale Price
$5747.88
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Motion Controller M262, 3ns/instruction, 16 axes, Ethernet
Specifications
(Modicon PLC) Digital Output Type
Transistor
(Modicon PLC) Digital Inputs
4
(Modicon PLC) Total Digital Signals
8
(Modicon PLC) Protocol
Ethernet IP/Modbus TCP
(Modicon PLC) Protocol
HTTP
(Modicon PLC) Protocol
Modbus RTU and ASCII
(Modicon PLC) Digital Input Type
Sink or source
(Modicon PLC) Protocol
serial link
(Modicon PLC) Protocol
HTTPS
(Modicon PLC) Protocol
Ethernet/IP adapter
(Modicon PLC) Protocol
DHCP client
(Modicon PLC) Protocol
IEC VAR ACCESS
(Modicon PLC) Protocol
Modbus TCP client
(Modicon PLC) Protocol
Modbus TCP server
(Modicon PLC) Protocol
SNMP client/server
(Modicon PLC) Protocol
FTP client/server
(Modicon PLC) Protocol
SQL client
(Modicon PLC) Protocol
Send and receive email from the controller based on TCP/UDP library
(Modicon PLC) Protocol
Web server
(Modicon PLC) Protocol
OPC UA server
(Modicon PLC) Protocol
DNS client
(Modicon PLC) Protocol
Web visu
(Modicon PLC) Protocol
Ethernet RSTP
(Modicon PLC) Protocol
MQTT
(Modicon PLC) Protocol
Sercos III
(Modicon PLC) Digital Outputs
4 transistor
Manufacturer
Schneider Electric
Component
M262 Motion Controller
Features
Digitize your machine thanks to IIoT-readiness
Communicate directly with the cloud by embedded protocols like API, TLS encryption, MQTT, OPC UA Server and Client
Provide benchmark performance with 3ns per inst for logic applications and up to 24 synchronized axes in 4ms
