Hoffman NHZ431216G460 AC 115V 11000 BTU Hazardous Location
Normally In Stock
Code: 19539
Hoffman NHZ431216G460 AC 115V 11000 BTU Hazardous Location
Condition: New
Usually ships Same Day or Next Day$14354.77
Sale Price
$11962.31
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Hoffman NHZ431216G460 AC 115V 11000 BTU Hazardous Location
Specifications
AC Width
12"
AC Mounting
Side Mount
AC Maximum Ambient Temp
125 F
AC Hazardous Class
Class 1 Div 2 Group A
AC Hazardous Class
Class 1 Div 2 Group B
AC Hazardous Class
Class 1 Div 2 Group C
AC Hazardous Class
Class 1 Div 2 Group D
AC With Remote Control Access
Includes Remote Control Access
AC Voltage
115 VAC
Hazardous Locations
For Hazardous Locations
AC Max BTU Rating
11000 BTU
AC Watts
3223
AC Type
Air Conditioner (Compressor)
AC Environment
Outdoor-Indoor
AC Minimum Ambient Temp
-40 F
AC Composition
Stainless Steel
Manufacturer
Hoffman
Component
Air Conditioner
Line
Spectracool Hazardous Location
AC Depth
15"
AC Height
44"
AC NEMA Rating
NEMA Type 4
AC Amperage
18.2 Amp
Features
Dust resistant coils for filterless operation in most environments
Corrosion resistant coating on ambient side components for Type 4X models
Corrosion resistant coating on ambient and enclosure side components for Type 4X Offshore models
Cleanable, reusable aluminum mesh filter protects coils for extremely dusty and dirty atmospheres
Painted galvanized sheet metal cover for rugged factory and outdoor environments
Not re-built from light industrial air conditioners
Digital temperature control
UL Listed to save customers time and money with agency approvals
Models for 115, 230 and 400/460 3-phase VAC power input
R134a, R513A or R407C earth-friendly Refrigerant
Narrow design to accommodate 12-in (300-mm) deep cabinets
Nominal cooling capacities:
Easy-Mount flanges for simple installation

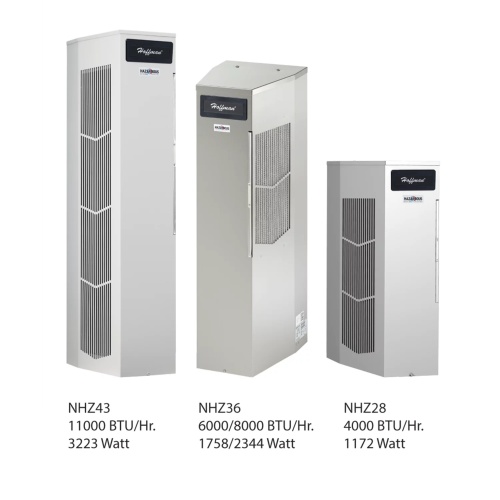

Standard Type 4/4X models include
- NHZ43 11000 BTU/hr. (3223 W)
- NHZ36 6000 & 8000 BTU/hr. (1758 and 2344 W)
- Compressor Heater
- Head Pressure Control
- Power-off relay for door switch and other system requirements
- Malfunction switch
- Active condensate management with heater strip
- NHZ28 4000 BTU/hr. (1172 W)
Outdoor model operating temperature range from -40 F/ -40 C to 131 F/ 55 C (125 F/52 C on NHZ28 Series and NHZ43 Series 115V)
Downloads
Hoffman NHZ431216G460 CAD Drawing.zipHoffman NHZ431216G460 Declaration of Compliance.pdfHoffman NHZ431216G460 EAC Certification.pdfHoffman NHZ431216G460 EU Certification.pdfHoffman NHZ431216G460 Instruction Manual.pdfHoffman NHZ431216G460 Spec Sheet.pdfHoffman NHZ431216G460 Spec-01063.pdfHoffman NHZ431216G460 UL Certification.pdfHoffman NHZ431216G460 User Manual.pdf
