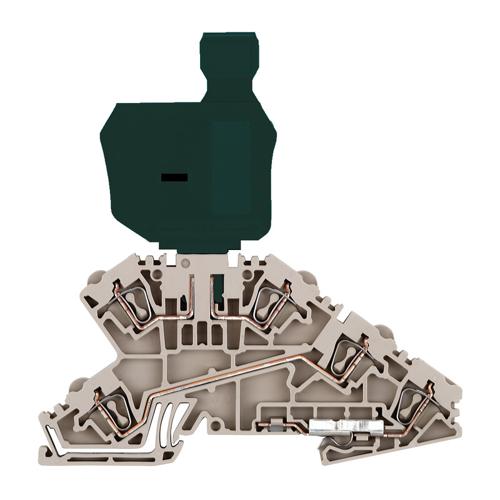

Weidmuller 1763170000 Installation Terminal Block
Normally In Stock
Code: 198955
Weidmuller 1763170000 - Tension Clamp Connection - 6.3 Amp - 5 Connections - 400 Volt - Dark Beige - 5.1 mm Wide (MUST BUY IN PACKS OF 25)
Condition: New
Usually ships within 4 weeks. Call for ship time.$18.16
Sale Price
$15.13
MUST BUY IN PACKS OF 25
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Weidmuller 1763170000 - Introducing Weidmuller Terminal Blocks, the versatile and reliable solution for your electrical connection needs. Designed with precision and built to last, these terminal blocks offer a robust and secure connection for various applications. With their modular design and flexibility, Weidmuller terminal blocks provide easy and efficient wiring, making them ideal for industrial automation, control panels, and electrical installations. Engineered for optimal performance, these terminal blocks ensure excellent conductivity, reducing the risk of signal loss and downtime.
Specifications
Terminal Block Voltage Rating
400 Volt
Terminal Block Number of Connections
5
Terminal Block Number of Levels
2
Terminal Block Width
5.1 mm
Component
Terminal block
Terminal Block Amperage
6.3 Amp
Sub Component
Installation terminal block
Terminal Block Component Color
Dark Beige
Manufacturer
Weidmuller
Terminal Block Indication
LED
Terminal Block Connection Method
Tension Clamp Connection
Downloads
Engineering Data - CAD data -- Design IN construction drawings 5.0.zipEngineering Data - CAD data -- Design IN PCB layout 5.0.zipEngineering Data - CAD data -- PCB_position_70149_LP-POSITION_17MM.pdfEngineering Data - CAD data -- Pin_header_pin_length_CH20M_A_OV_PCB-SHL_70315.pdfEngineering Data - CAD data -- STEP.stpProduct Change Notification - 20230111 Änderung des Schriftfeldes an der LP 7.xx.pdfProduct Change Notification - 20230111Modification of the text field at the LP 7.xx.pdfProduct Change Notification - Change of packaging - DE.pdfProduct Change Notification - Change of packaging - EN.pdfProduct Change Notification - PCN_2015_208_PL30X_SC-SMT_SL_SMT_3.xx_5.xx_neue_Tapeverpackung_Step_1_DE.pdfProduct Change Notification - PCN_2015_208_PL30X_SC-SMT_SL_SMT_3.xx_5.xx_new_Tape_Packaging_Step_1_EN.pdfProduct Change Notification - PCN_2016_273_PL32_Loss_of_nickle_LL_LP_Family_EN.pdfProduct Change Notification - PCN_2016_273_PL32_Wegfall_Unternickelung_LL_LP_Familie_DE.pdfUser Documentation - Instruction sheet.pdfUser Documentation - Through-Hole-Reflow Design Anwendungsempfehlung.pdfUser Documentation - Through-Hole-Reflow design recommendation for use.pdf
