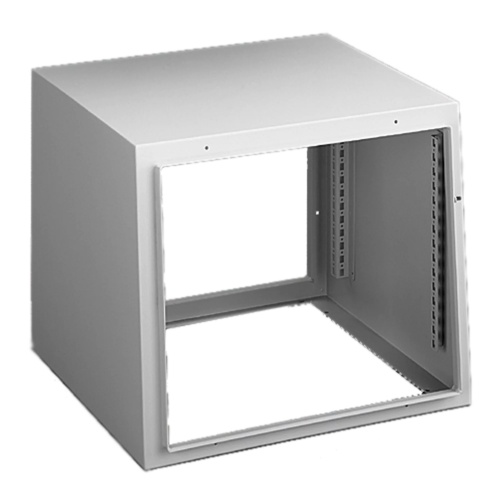

Hoffman PST786 PROLINE HMI Slope Front Enclosure
Normally In Stock
Code: 20596
Hoffman PST786 PROLINE HMI Sloped Front Enclosure 27.85" H x 31.81" W x 18.92" D (700 x 800 x 600 mm). Painted Steel enclosure frame with full front opening with sloped front for door or cover. Rear opening for door or cover. Open bottom for options to connect to tall PROLINE frame, joined through cutout base to pedestal or pendant arm system. (DOES NOT INCLUDE BACK PANEL)
Condition: New
Usually ships Same Day or Next Day (DOES NOT INCLUDE BACK PANEL)$5108.02
Sale Price
$3929.25
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

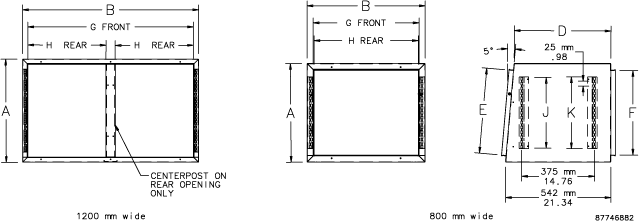

Hoffman PST786 PROLINE HMI Enclosure Painted Steel Slope Front with front opening of 25.22"H x 21.11"W (640 x 736 mm) and rear opening of 25.02" H x 21.11" W (636 x 736 mm). Optional PROLINE frame shelf or PROLINE grid system is recommended to provide a stationary platform for supporting deep equipment. PROLINE Steel HMI Enclosures provide a comprehensive system for housing Human-Machine Interface (HMI) computers and related control devices in a corrosive environment. With these enclosures you can develop a customized solution that meets your application’s requirements exactly, including UL/CSA Type 4X protection
Specifications
HMI Environment Rating
Outdoor-Indoor
HMI Door Type
Solid
HMI Composition
Steel
HMI Interior Color
Gray
HMI Depth
24.0"
HMI Height
28.0"
HMI Width
32.0"
Manufacturer
Hoffman
HMI Mount Type
Pendant/Pedestal Mount
Line
PROLINE
Component
HMI Enclosure
HMI NEMA Rating
NEMA Type 12
HMI Number of Doors
1 Door
Features
A support bracket allows the 600x600-mm sizes to be suspended from an overhanging pendant arm system
The bottom of the 600x600-mm sizes can be joined through a base with cutout to a pedestal or pendant arm system
Enclosure is available in three heights
