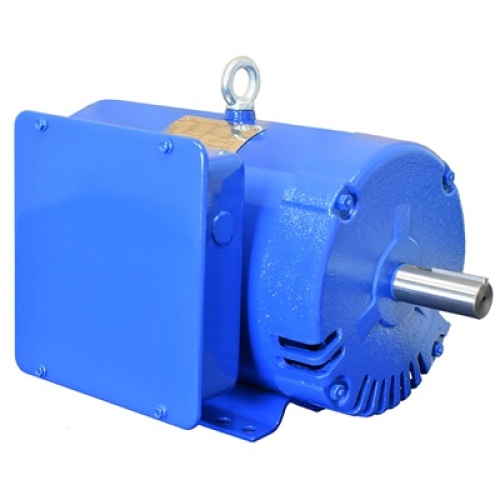

NAE D182T3S4C Electric Motor Compressor Duty, 208-230 Volt, 1 Phase, 3 HP, 13.3-12 Amp
Normally In Stock
Code: 217194
NAE D182T3S4C Electric Motor 3 HP, 1800 RPM, 182T Frame, 208-230V, 1PH, NEMA Design B, 60HZ, 1.15 S.F., ODP, Compressor Duty, Rolled Steel
Condition: New
Usually ships Same Day or Next Day$510.22
Sale Price
$425.18
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
NAE D182T3S4C Compressor Duty Electric Motor used for Pumps; Fans; Conveyors; Blowers; Air compressors; Refrigeration equipment; Industrial equipment; Milling machines; Tools; Farm equipment; Aeration equipment; Other general purpose applications where contaminants are minimal> Service factor: 1.15 @ 60 Hz; NEMA Design B Performance/ High starting torque; Dual-drilled feet for mounting flexibility; Capacitor start/ capacitor run design. Class F insulation system; Class B rise at full load; Class H vacuum pressure impregnation (VPI) resin for all windings; Corrosion-resistant epoxy paint, stainless steel nameplate and zinc plated hardware and cast iron endbells; IP22 protection. Sealed bearings; 2-year warranty
Specifications
Motor Insulation Class
Class F Insulation
Motor Horsepower
3 HP
Motor Frame Model
182T
Motor Frequency
60 Hz
Motor RPM's
1800 RPM
Motor Voltage
208-230 Volt
Motor Voltage Phases
1 Phase
Motor NEMA Design
NEMA Design L
Motor Frame Construction
Rolled Steel
Manufacturer
North American Electric Motors
Motor Amperage (Full Load)
13.3 - 12 Amp
Motor Enclosure Type
Open Drip-Proof
Features
Service factor: 1.15 @ 60 Hz
NEMA Design B Performance/ High starting torque
Dual-drilled feet for mounting flexibility
Capacitor start/ capacitor run design
Class F insulation system
Class B rise at full load
Class H vacuum pressure impregnation (VPI) resin for all windings
Corrosion-resistant epoxy paint, stainless steel nameplate and zinc plated hardware and cast iron endbells
IP22 protection
Sealed bearings
2-year warranty
