Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

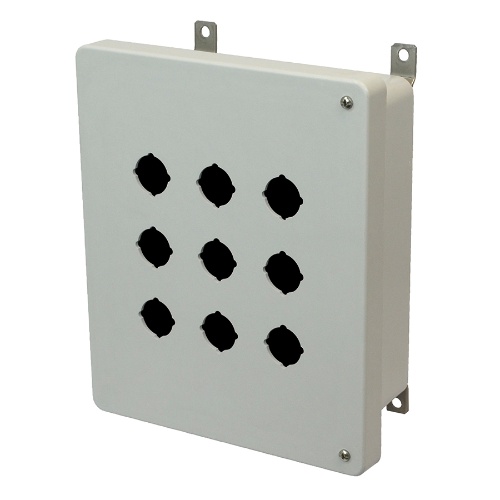

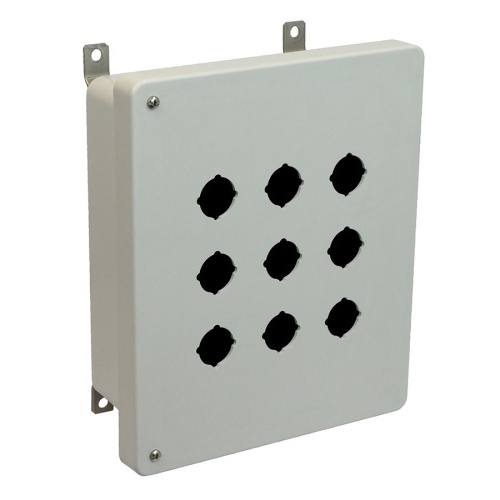

Allied Moulded AM1084HP9 Non Metallic Polyester Push Button Enclosure
Normally In Stock
Code: 22217
Allied Moulded AM1084HP9 ULTRAGUARD Fiberglass reinforced polyester Type 4x Push Button Enclosure with 9 holes 30.5mm. 10" x 8" x 4" (HXWXD) Inside Dimension. Opaque cover with two screw hinged cover. 316 Stainless Steel hinge, external hardware and plated carbon steel internal hardware.
Condition: New
Ships in 2 weeksMust order a minimum of $150 of Allied Moulded products for order to ship.
$152.71
Sale Price
$127.26
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Allied Moulded AM1084HP9 ULTRAGUARD Fiberglass reinforced polyester Type 4x Push Button Enclosureto protect electronic and electrical controls, components and instruments in outdoor and indoor applications. Non-corrosive and non-conductive is lightweight and easy to modify. Rigid design compression molded SMC box and Cover ideal for extreme temperature and corrosive environments.
Specifications
Enclosure Depth
4"
Enclosure Environment Rating
Outdoor-Indoor
Enclosure Hinge Type
Standard Hinge
Enclosure Composition
Polyester
Enclosure NEMA Rating
NEMA Type 4X
Enclosure Width
8"
Manufacturer
Allied Moulded
Line
AM Series
Component
Push Button Enclosure
Enclosure Mount Type
Wall Mount
Enclosure Height
10"
Enclosure Latch Type
Screw
Push Button Number
9
Features
Non-corrosive, non-conductive, light weight with lower installation cost, easy to modify and longer life cycle compared to steel. Rigid design with back panel inserts plus stainless steel mounting brackets and a gasket system encased in a continuous channel on the cover.
Rigid design with back panel inserts plus stainless steel mounting brackets and a gasket system encased in a continuous channel on the cover.
