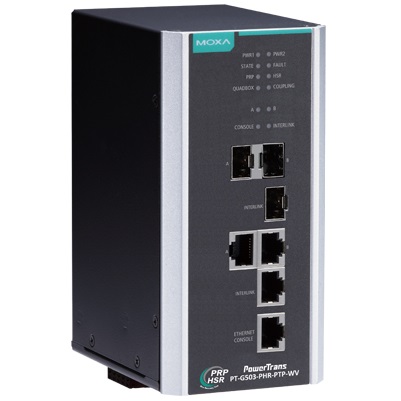

Moxa PT-G503-PHR-PTP-HV Managed Switch
Normally In Stock
Code: 26399
Moxa PT-G503-PHR-PTP-HV Managed Ethernet Switch (Din Rail Mount) IEC 61850-3 Power Substation certification with a total of 1 console port Gigabit Copper RJ45 (1000 Mbps) and 3 ports including 3 Combo ports for either 3 Gigabit Copper ports RJ45 (1000 Mbps) or 3 Gigabit Fiber SFP Plug-In ports ( Use SFP-1FE/1G SFP's). Operating Temperature: -40 to 185°F. Isolated 88-300 VDC or 85-264 VAC Power Supply.
Condition: New
Usually ships Same Day or Next Day$4078.32
Sale Price
$3398.60
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Moxa PT-G503-PHR-PTP-HV Managed Ethernet Switch (Din Rail Mount) IEC 61850-3 Power Substation certification with a total of 1 console port Gigabit Copper RJ45 (1000 Mbps) and 3 ports including 3 Combo ports for either 3 Gigabit Copper ports RJ45 (1000 Mbps) or 3 Gigabit Fiber SFP Plug-In ports ( Use SFP-1FE/1G SFP's). Operating Temperature: -40 to 185°F. Isolated 88-300 VDC or 85-264 VAC Power Supply.
Specifications
Certification
IEC 61850-3 Certified
Min. # Gigabit Copper Ports
At least 1 Gigabit Copper RJ45 Port
Min. # Gigabit Copper Ports
At least 2 Gigabit Copper RJ45 Port
Min. # Gigabit Copper Ports
At least 3 Gigabit Copper RJ45 Port
Switch Power Connection
Wire Terminals
Switch Mounting
Rack Mount
Switch Management
Managed
Switch Temperature Range
-40F to 185F
Switch Fiber Ports Plug-In Gigabit (1000 Mbps)
3 Plug-In Gigabit Fiber
Switch Copper Ports Gigabit (1000) Mbps
3 RJ45 Ports (Combo)
Switch Voltage Input
110 VDC
Switch Voltage Input
230 VDC
Switch Ruggedized
Isolated Power Supply
Min. # Gigabit Fiber SC Ports
At least 1 Gigabit Fiber Plug-In Port
Min. # Gigabit Fiber SC Ports
At least 2 Gigabit Fiber Plug-In Port
Min. # Gigabit Fiber SC Ports
At least 3 Gigabit Fiber Plug-In Port
Switch POE Ports
No POE Ports
Switch Total Ports
3
Switch Model
Moxa EDS PT-G
Switch All Ports
3 Gigabit Plug-In Fiber
Switch All Ports
3 Gigabit Copper RJ45
Manufacturer
Moxa
Features
IEC 61850-3, IEEE 1613 (power substations) compliant
IEC 62439-3 Clause 4 (PRP) and Clause 5 (HSR) compliant
PRP/HSR Coupling and QuadBox functions supported
Ethernet console reserved for local access
Built-in MMS server based on IEC 61850-90-4 switch data modeling for power SCADA
Hardware-based IEEE 1588v2 PTP supported
Design ready for NERC CIP compliant system development
Power inputs with universal 24 VDC, 48 VDC, or 110/220 VDC/VAC power supply range
-40 to 85°C operating temperature range
