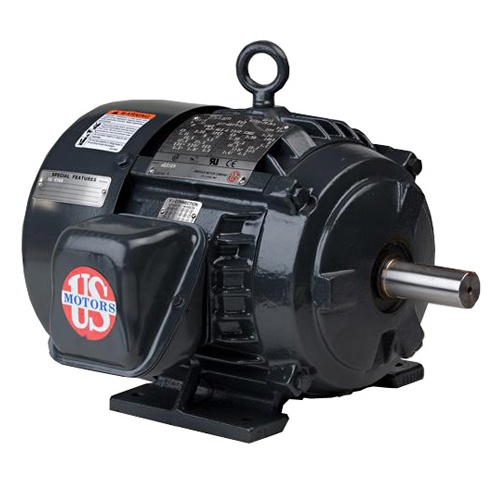

Nidec A75P3C - TEFC, 1200 RPM, 75 HP
Normally In Stock
Code: 309923
Nidec A75P3C - Totally Enclosed Fan Cooled - 75 HP - 1200 RPM - 445U Frame - 60 Hz - 460 Max Volt - Class F Insulation - Cast Iron
Condition: New
Usually ships Same Day or Next Day$27416.78
Sale Price
$22847.32
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Nidec A75P3C - The Definite Purpose Automotive Duty World Motor U Frame Premium Efficient Footed motor is specifically designed for automotive and process industries that require "U" frame sizes. It meets GM7EH, Ford EM-1, and Chrysler NPEM-105 specifications. The motor features Class F insulation, cast iron frame and end brackets (for 180 frame and larger sizes), corrosion-resistant paint, and stainless steel components. It has a shaft slinger for IP54 protection and operates with a service factor of 1.15 at 40°C and 1.0 at 65°C ambient temperature. The motor has regreasable bearings (180 frame and larger) and sealed bearings (56 frame), low vibration levels, and an oversized conduit box. It also includes a steel fan cover for added durability.
Specifications
Motor Enclosure Type
Totally Enclosed Fan Cooled
Motor Insulation Class
Class F Insulation
Motor Horsepower
75 HP
Motor RPM's
1200 RPM
Motor Frequency
60 Hz
Motor Voltage
460 Volt
Motor Construction
Cast Iron
Manufacturer
Nidec
Motor Frame Model
445U
Features
Class F Insulation, 60°C Rise At Full Load
Cast Iron Frame & End Brackets (180 Frame & Larger)
Corrosion Resistant Mill & Chemical Duty Paint
Stainless Steel Nameplate & Zinc Plated Hardware
Shaft Slinger On Pulley End For IP54 Protection
1.15 SF @ 40°C
1.0 SF @ 65°C Ambient, NEMA®† Design B On 60 Hertz Sine Wave Power
Regreasable Double Shielded Bearings w/ "Straight-Through" Lube System (180 Frame & Up), Sealed Bearings on 56 Frame
85 dBA Max Sound Power Level
Precision Balance (< 0.075 In/Sec Vib.), Lifting Provisions 180 Frame & Up
Oversized Diagonally Split Conduit Box w/Lead Positioning Gasket (180 Fr & Up)
Steel Fan Cover
