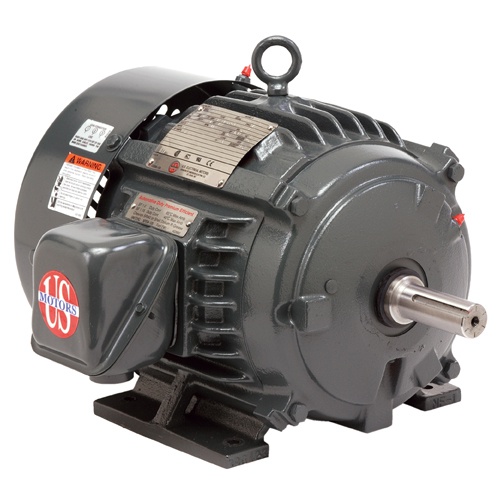

Nidec HD5V2BC - TEFC, 3 Phase, 5 HP
Normally In Stock
Code: 312495
Nidec HD5V2BC - Totally Enclosed Fan Cooled - 3 Phase - 5 HP - 1800 RPM - 184TC Frame - 60 Hz - 460 Max Volt - INVERTER GRADE® Insulation - Cast Iron
Condition: New
Usually ships Same Day or Next Day$974.92
Sale Price
$812.43
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Nidec HD5V2BC - Introducing the Definite Purpose Three Phase Totally Enclosed Fan Cooled (TEFC) World Motor HOSTILE DUTY®. This motor is designed for demanding applications requiring variable torque and constant torque. With an Inverter Grade® Insulation System, Class F thermostats, and shaft grounding ring, it ensures reliable and safe operation. The motor features a corrosion-resistant mill and chemical duty paint, cast iron construction, and stainless steel nameplate for durability. It offers dual voltage capability, NEMA® Design B performance, and regreasable ball bearings. With a wide range of features including constant horsepower, field convertibility, and various conversion kits, it is ideal for pumps, fans, blowers, and inverter-powered applications. Upgrade your industrial equipment with The dependable and versatile Definite Purpose Three Phase Totally Enclosed Fan Cooled (TEFC) World Motor HOSTILE DUTY®.
Specifications
Motor Enclosure Type
Totally Enclosed Fan Cooled
Motor Voltage Phases
3 Phase
Motor Horsepower
5 HP
Motor Frame Model
184TC
Motor Voltage
230 Volt
Motor Voltage
460 Volt
Motor RPM's
1800 RPM
Motor Construction
Cast Iron
Manufacturer
Nidec
Motor Insulation Class
INVERTER GRADE® Insulation
Features
Inverter Grade® Insulation System (Meets NEMA®† MG-1 Part 31)
Class F Thermostats (One Per Phase)
Shaft Grounding Ring
Corrosion Resistant Mill & Chemical Duty Paint
Cast Iron Frame, Cast Iron End Brackets
Stainless Steel Nameplate & Zinc Plated Hardware
Shaft Slinger On Pulley End For IP54 Protection
Dual Voltage 230/460 Volts (1-100 HP)
40°C Ambient, NEMA®† Design B Performance On 60 Hz Sine Wave Power
Regreasable Ball Bearings 250 Frame & Up, Lifting Provisions
Double Shielded Bearings 140-360, Open On 400-440
Double Dip & Bake With Extra Bracing
Class F Insulation, 1.15 S.F. On Sine Wave / 1.0 S.F. On PWM
Constant Horsepower To 90 Hz
Steel Fan Cover & Conduit Box
Field Convertible To F2 Mounting
Condensation Drains With Plastic Plugs
Conversion Kits: All Cast Iron Upgrade, C&D Flanges, Canopy Kits
C-Face Footed 1-5 HP
Bearing Caps On 400-440
Non-Drive End Insulated Bearing On 400-440
