Phoenix Contact 3100076 Thermoelectric voltage terminal block pair MTKD-NICR/CUNI EX
Normally In Stock
Code: 41449
MTKD-NICR/CUNI EX Phoenix Contact 3100076 MTKD-NICR/CUNI EX Thermoelectric voltage Terminal Block pair, Screw Connection 1 Level 10.4 mm with 4 Connections. Not Grounded, Not Fused Gray. 400 Volt, 1 Amp max rating.
Condition: New
Usually Ships Same day or Next Day$21.85
Sale Price
$18.21
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

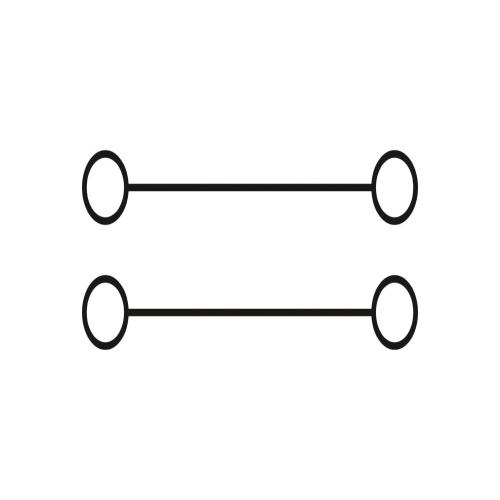

Phoenix 3100076 The TC type E thermoelectric voltage terminal block features a nominal voltage of 400 V and current capacity of 1 A, accommodating up to four connections. It has two positions and is secured with screw connections at one level. The cross-sectional area ranges from 0.2 mm² to 4 mm², suitable for mounting types NS 35/7.5, NS 35/15, and NS 32. The terminal block has a gray color.
Specifications
Terminal Block Voltage Rating
400 Volt
Terminal Block Width
10.4 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
4
Terminal Block Component Color
Gray
Terminal Block Connection Method
Screw Connection
Terminal Block Max Wire Size
12
Terminal Block Min Wire Size
24
Jumper Number of Positions
2
Component
Terminal block
Manufacturer
Phoenix Contact
Terminal Block Amperage
1 Amp
Sub Component
Feed-through terminal block
Sub Component
Thermoelectric Voltage Terminal Block Pair
Features
These special terminal blocks are used to extend thermocouple equalizing conductors in corresponding measuring circuits
This ensures that no false thermoelectric voltages occur at the junctions of the thermocouple/terminal block/compensating line and that the basic values in accordance with EN 60584/DIN EN 60584 are observed
The equalizing conductors are made from materials which, up to temperatures of 200°C, have the same thermal characteristics as the corresponding thermocouples
Downloads
Phoenix 3100076 CAD data International.dxfPhoenix 3100076 CAD data International.pdfPhoenix 3100076 CAD data International.stpPhoenix 3100076 Certification International.pdfPhoenix 3100076 Manufacturers declaration English.pdfPhoenix 3100076 Manufacturers declaration International.pdfPhoenix 3100076 Safety note English.pdfPhoenix 3100076 Tender Text English.zipPhoenix 3100076 User instructions for the Ex Area English.pdf
