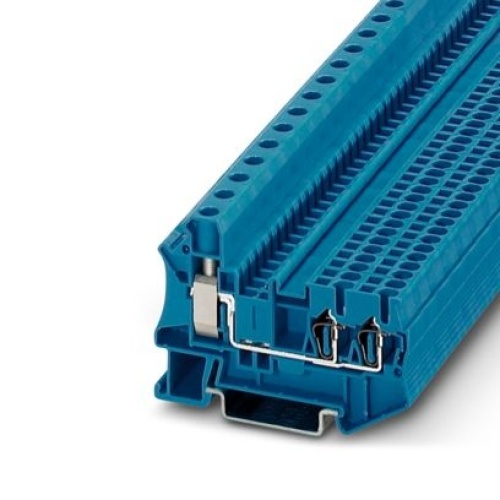

Phoenix Contact 3033142 Potential collective terminal STU 10/ 4X2,5 BU
Normally In Stock
Code: 41463
STU 10/ 4X2,5 BU Phoenix Contact 3033142 Potential collective Terminal - STU 10/ 4X2,5 BU Spring Cage Connection 1 Level 10.3 mm with 5 Connections. Not Grounded, Not Fused Blue. 800 Volt, 24 Amp max rating.
Condition: New
Usually Ships Same day or Next Day$8.93
Sale Price
$7.44
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix 3033142 The terminal has a rated voltage of 800 V and is connected by screw or spring-cage methods for cross sections ranging from 0.08 mm2 to 16 mm2. Its nominal current rating is 55 A, with smaller cross sections rated at 2.5 mm2 and larger ones up to 4 mm2, while it can be mounted using two standard types: NS35/7.5 and NS35/15, distinguished by a blue color.
Specifications
Terminal Block Voltage Rating
800 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
10.3 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
5
Terminal Block Component Color
Blue
Terminal Block Grounded
Not Grounded
Terminal Block Connection Method
Spring-cage Connection
Terminal Block Amperage
24 Amp
Component
Terminal block
Manufacturer
Phoenix Contact
Sub Component
Potential Collective Terminal Block
Features

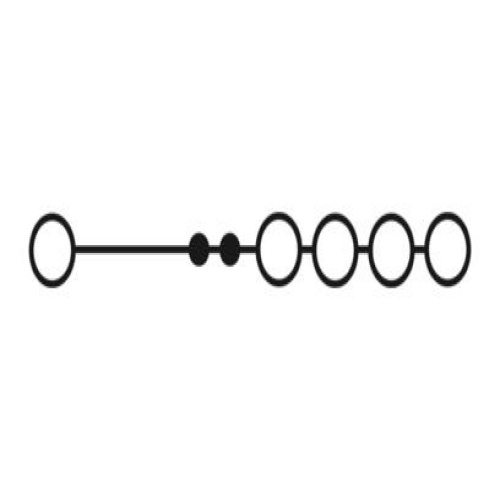

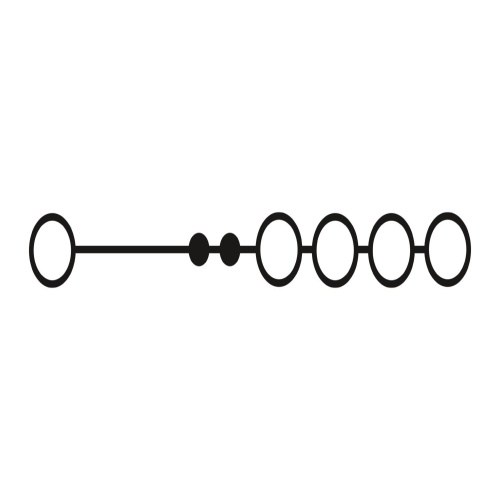

The STU 10/4x2,5 spring-cage hybrid terminal block is a space-saving potential distributor that distributes a 10 mm² supply line to four 2.5 mm² connections
The double bridge shaft supports further potential distributions
The system-internal distribution is via four spring-cage connections with a nominal cross section of 2.5 mm²
Can be consistently bridged to standard terminal blocks in the ST spring-cage terminal block series
Supplied using a 10 mm² screw connection
