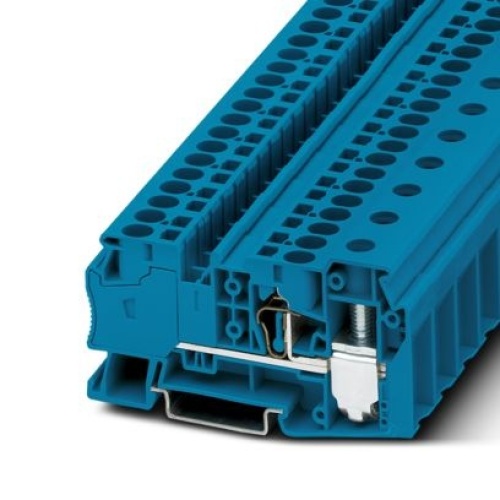

Phoenix Contact 3033210 Potential collective terminal STU 35/ 4X10 BU
Normally In Stock
Code: 41465
STU 35/ 4X10 BU Phoenix Contact 3033210 Potential collective Terminal - STU 35/ 4X10 BU Screw Connection 1 Level 16.2 mm with 5 Connections. Not Grounded, Not Fused Blue. 1000 Volt, 125 Amp max rating.
Condition: New
Usually Ships Same day or Next Day$27.18
Sale Price
$22.65
MUST BUY IN PACKS OF 25
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix 3033210 The terminal has two connections, one with a spring-cage mechanism and the other with a screw connection. The rated cross-section for each is specified, as well as their respective material ranges. For the line contact connection, additional specifications include mounting types (NS 35/7.5 and NS 35/15) and color.
Specifications
Terminal Block Voltage Rating
1000 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
16.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
5
Terminal Block Component Color
Blue
Terminal Block Connection Method
Screw Connection
Terminal Block Amperage
125 Amp
Terminal Block Grounded
Not Grounded
Component
Terminal block
Manufacturer
Phoenix Contact
Sub Component
Potential Collective Terminal Block
Features

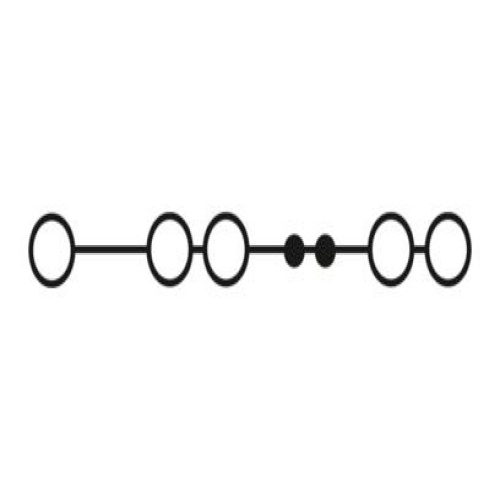

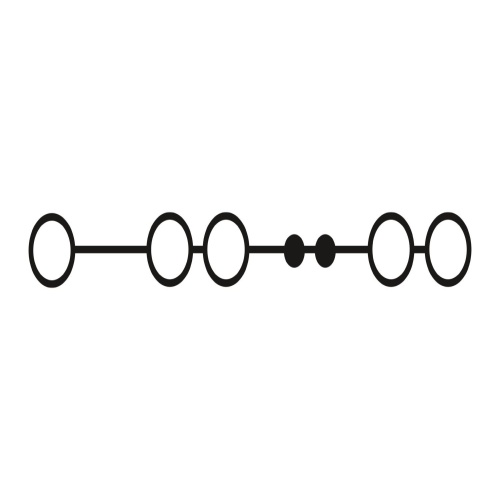

The STU 35/4x10 spring-cage hybrid terminal block is used to divide a 35 mm² supply line into four 10 mm² connections
The system-internal distribution is via four spring-cage connections with a nominal cross section of 10 mm²
Supplied using a 35 mm² screw connection
Can be consistently bridged to standard terminal blocks in the ST spring-cage terminal block series
The double bridge shaft supports further potential distributions
