Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

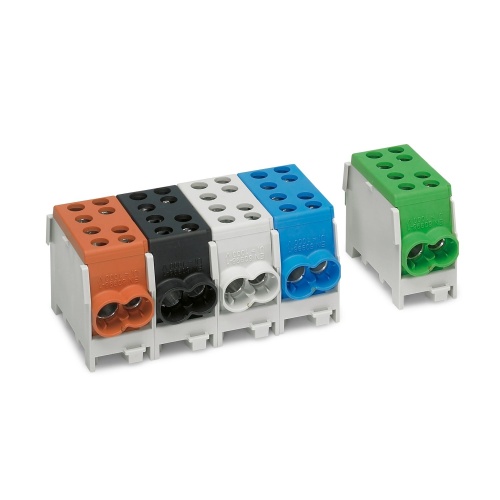

Phoenix Contact 3071350 Trunk line branch terminal UDB 2X35/25 GY
Normally In Stock
Code: 41466
UDB 2X35/25 GY Phoenix Contact 3071350 Trunk line branch Terminal - UDB 2X35/25 GY Screw Connection 1 Level 27 mm with 4 Connections. Not Grounded, Not Fused Gray. 400 Volt, 125 Amp max rating.
Condition: New
Usually Ships Same day or Next Day$30.59
Sale Price
$25.49
MUST BUY IN PACKS OF 5
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix 3071350 A trunk line branch terminal features a nominal voltage of 400 V and a maximum current rating of 125 A. It has four connections and one position with screw connections for securing the rated cross-sectional area of 10 mm2 to 35 mm2. For smaller areas, there are additional positions with screw connections for cross-sections ranging from 1.5 mm2 to 25 mm2. The mounting type is NS 35/7.5 and NS 35/15, and the color is gray.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
400 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
27 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
4
Terminal Block Component Color
Gray
Terminal Block Connection Method
Screw Connection
Terminal Block Amperage
125 Amp
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
2
Terminal Block Min Wire Size
8
Jumper Number of Positions
1
Component
Terminal block
Manufacturer
Phoenix Contact
Sub Component
Feed-through terminal block
Sub Component
Trunk Line Branch Terminal
Features
The branch terminal is suitable for the simple voltage pick-off of main supply cables
Conformance with DIN VDE 0603‑2/EN 60998‑1
