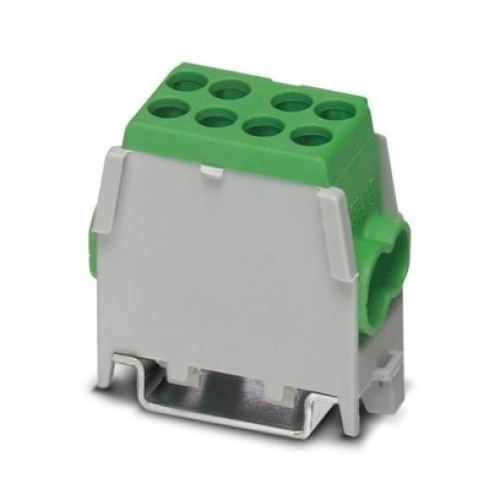

Phoenix Contact 3071359 Trunk line branch terminal UDB 2X25/16 GN
Normally In Stock
Code: 41475
UDB 2X25/16 GN Phoenix Contact 3071359 Trunk line branch Terminal - UDB 2X25/16 GN Screw Connection 1 Level 23 mm with 4 Connections. Not Grounded, Not Fused Green. 400 Volt, 101 Amp max rating.
Condition: New
Usually ships within 7-14 days. Call for ship time.$16.64
Sale Price
$13.87
MUST BUY IN PACKS OF 5
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix 3071359 The specified terminal has a nominal voltage of 400V and an operational current of 101A. It features four connections with one position available for use. The connections are secured via screw fastening. The rated cross-section ranges from 1.5mm² to 25mm², while the secondary level's range is between 1.5mm² and 16mm². Two types of mounting are provided, designated as NS 35/7,5 and NS 35/15, with a color coding of green.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
400 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
23 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
4
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
2
Terminal Block Component Color
Green
Terminal Block Min Wire Size
8
Terminal Block Amperage
101 Amp
Jumper Number of Positions
1
Component
Terminal block
Manufacturer
Phoenix Contact
Sub Component
Feed-through terminal block
Sub Component
Trunk Line Branch Terminal
