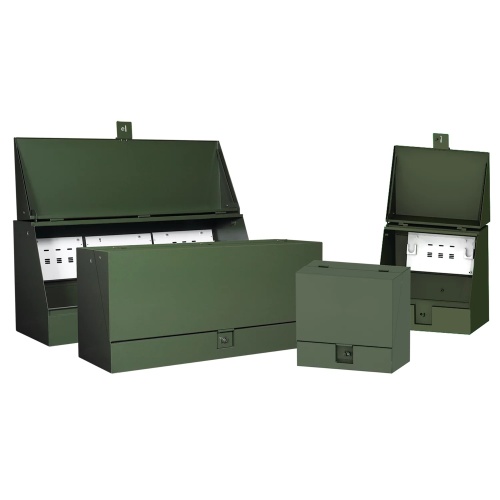

Hoffman UJ306723A Utility Junction (UJ) Cabinet
Normally In Stock
Code: 42908
Hoffman UJ306723A Utility Junction (UJ) Cabinets Outdoor-Indoor 30" x 67" x 23" (HxWxD) Steel Enclosure. Free-Standing Painted Aluminum with Recessed Penta-Head Bolt latch Standard Hinge. (DOES NOT INCLUDE BACK PANEL)
Condition: New
Usually ships Same Day or Next DayDOES NOT INCLUDE BACK PANEL
$2889.54
Sale Price
$2407.95
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Hoffman UJ306723A Utility Junction (UJ) Cabinet Utility Junction (UJ) Enclosures provide sectionalizing and tap-point functionality for underground distribution systems. Single- and three-phase models, these enclosures are rated 15 and 25 KV at 200 or 600 amperes and will accept two-, three- and four-way junctions from all manufacturers. Ground nut for each phase, Recessed stainless steel penta-head bolt with padlock security system, 5/8-11 threaded lifting provisions, and Wind stop.
Specifications
Enclosure Composition
Galvanized Steel
Enclosure Interior Color
White
Enclosure Lock Type
Padlocking
Enclosure Depth
23"
Enclosure Interior Color
Green
Enclosure Height
30"
Enclosure Width
67"
Manufacturer
Hoffman
Enclosure Environment Rating
Indoor
Enclosure Door Type
Solid
Enclosure Mount Type
Wall Mount
Component
Commercial Enclosure
Enclosure Number of Doors
1 Door
Enclosure Environment Rating
Underground
Enclosure Type
UJ Cabinet
Features
Full range of modifications available on request
Wind stop standard on all models (two stops provided if B dimension is greater than or equal to 42-inch (1067mm))
Ground nut for each phase
When ordering UJ cabinets, customer may specify multiple mounting panel options, including mild steel, galvanized and stainless steel (panels must be purchased separately)
5/8-11 threaded lifting provisions
Recessed stainless steel penta-head bolt with padlock security system standard on all models
ANSI C57.12.28 Pad-Mounted Equipment Enclosure Integrity RUS Approved
