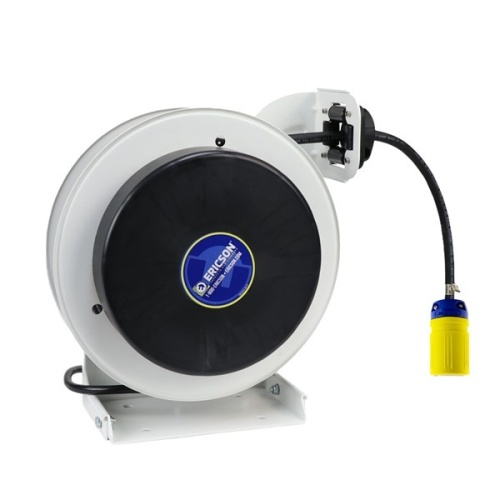

Ericson F3163-50-510 Light Industrial Grade Cable Reel - 50 ft, 16 AWG, 10 Amp, 125 Volt, White/Black
Normally In Stock
Code: 583309
Ericson F3163-50-510 Reel, Flex Rig, Light Ind. Grade, 50 Ft Of 16/3 Sow, Connector Nema 5-15c, Primary Feeder = Plug Nema 5-15 @ 6 Ft - 9" x 20" x 16" (LxHxW)
Condition: New
Usually ships Same Day or Next DayMUST ORDER A MINIMUM OF $150 FROM ERICSON FOR PRODUCT TO SHIP
$725.86
Sale Price
$604.88
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Ericson F3163-50-510 is a White & Black light industrial-grade power cable with a NEMA 2 environmental rating. Constructed with a steel frame and nylon, it has a 50ft cable length and a 10A load capacity. Ideal for warehouses, retail stores, maintenance shops, schools, and laboratories, it powers tools, displays, machines, and light sources. With a voltage of 125V, the cable is equipped with a SOW type cable and a F3000 reel type with a white powder-coated metal finish. It features a NEMA 5-15C secondary cable connector, a 3-conductor primary cable with a NEMA 5-15 plug, and an AWG of 16. - Ideal for warehouses, retail stores, maintenance shops, schools, and laboratories to power tools, seasonal displays, machines, and light sources
Specifications
Manufacturer
Ericson
Component
Cable Reels
Voltage
125 Volt
NEMA Rating
NEMA 2
Cable Type
SOW
Wire Gauge
16 AWG
Load Capacity (Amps)
10 Amp
Finish
White Powder Coated Metal
Sub Component
Light Industrial Grade Cable Reel
Reel Type
F3000 - Commercial Grade Duty (13" Spool Diameter)
Construction
Steel Frame
Construction
Nylon
Features
Adjustable ball stop and locking ratchet
Four-roller cable guide minimizes cable stress that extends the life of the cable
Separate innovative mounting base plate offers flexibility in mounting options, attach one to a ceiling, wall, or bench
cULus Listed
Designed for indoor use, NEMA 2 rated
20 amp, 125-volt slip ring
Six-foot primary feeder cord
Adjustable ball stop & guide arm
Ceiling, wall, or bench mounting
Reinforced steel frame
Black nylon molded slip cover
Best-in-class, robust, long-life spring
1 Year Warranty
Made in the USA
