Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
URTKD/SP Phoenix Contact 0311142 gray Feed-through Terminal Block
Normally In Stock
Code: 63096
URTKD/SP Phoenix 0311142 Feed-through terminal block Screw connection 500 V 41 Amp gray Terminal Blocks
Condition: New
Usually ships Same Day or Next Day (MUST BUY IN PACKS OF 50)$78.08
Sale Price
$47.85
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Disconnect terminal block, nom. voltage: 500 V, nominal current: 41 A, connection method: Screw connection, number of connections: 2, cross section: 0.5 mm² - 10 mm², AWG: 20 - 8, width: 8.2 mm, color: gray, mounting type: NS 35/7,5, NS 35/15, NS 32
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
500 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
8.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Component Color
Gray
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
8
Terminal Block Min Wire Size
20
Terminal Block Disconnect
Removable Disconnect
Terminal Block Amperage
41 Amp
Component
Terminal block
Manufacturer
Phoenix Contact
Sub Component
Feed-through terminal block
Sub Component
Disconnect terminal block
Features

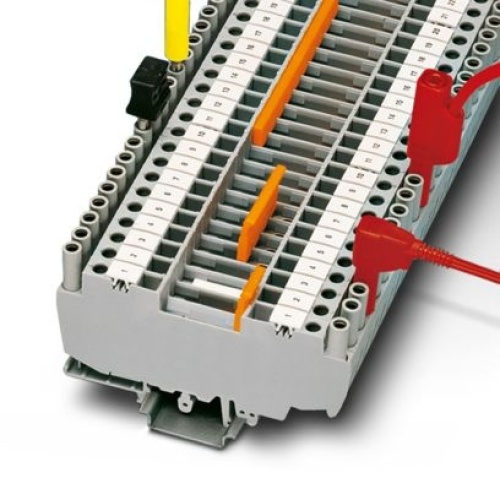

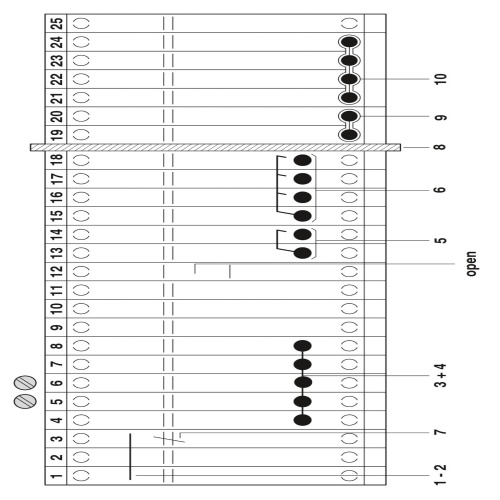

The terminal blocks can be fitted with fixed and switchable bridges on both sides
Touch-proof test sockets with 4 mm diameter are already permanently integrated
Downloads
Phoenix 0311142 CAD data International.dxfPhoenix 0311142 CAD data International.pdfPhoenix 0311142 CAD data International.stpPhoenix 0311142 Manufacturers declaration English.pdfPhoenix 0311142 Manufacturers declaration International.pdfPhoenix 0311142 Safety note English.pdfPhoenix 0311142 Tender Text English.zip
