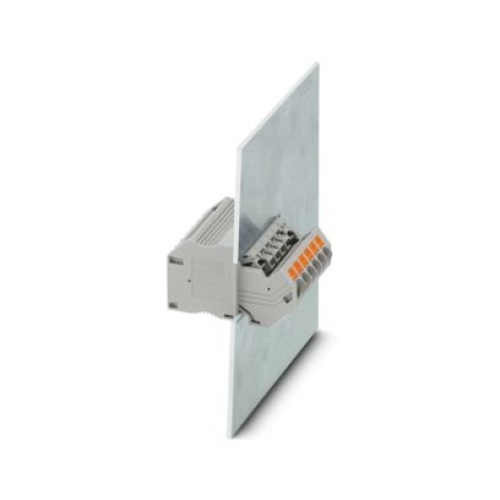

Phoenix Contact 3044908 Panel Feed-through Terminal Block
Code: 63115
Phoenix 3044908 Feed-through terminal block Terminal Blocks
This product is now obsolete from the manufacturer
Below are replacement products designated by the manufacturer. See description and specs to assure they will work for your application.
Related Products
Replacement Products
Description

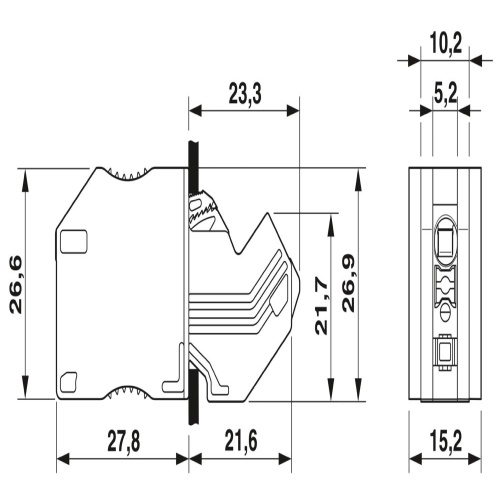

Panel feed-through terminal block, Minimum distance to other conductive surfaces: min 5 mm, nom. voltage: 500 V, nominal current: 24 A, connection method: Push-in connection, number of connections: 6, number of positions: 3, cross section: 0.14 mm² - 4 mm², AWG: 26 - 12, width: 20.5 mm, height: 26.6 mm, color: gray, mounting type: Wall mounting
Specifications
Terminal Block Indication
No Indicator
Terminal Block Fused
Not Fused
Terminal Block Number of Connections
6
Terminal Block Grounded
Not Grounded
Jumper Pitch
5.2 mm
Jumper Number of Positions
3
Component
Terminal block
Manufacturer
Phoenix Contact
Sub Component
Feed-through terminal block
Sub Component
Panel Feed-through Terminal Block
Downloads
Phoenix 3044908 CAD data International.dxfPhoenix 3044908 CAD data International.pdfPhoenix 3044908 CAD data International.stpPhoenix 3044908 Manufacturers declaration International.pdfPhoenix 3044908 Manufacturers declaration International-2.pdfPhoenix 3044908 Package Slip International.pdfPhoenix 3044908 Safety note English.pdfPhoenix 3044908 Tender Text English.zip
