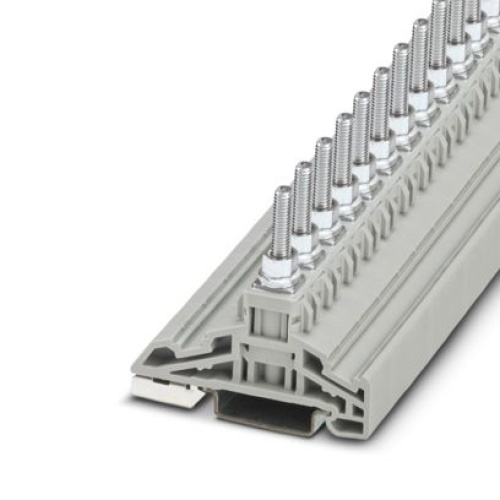

Phoenix Contact 3049107 High-current connector HV M5/1
Normally In Stock
Code: 63328
HV M5/1 Phoenix 3049107 Bolt connection terminal block Bolt connection 1000 V 76 Amp gray Terminal Blocks
Condition: New
Usually Ships Same day or Next Day$18.60
Sale Price
$15.50
MUST BUY IN PACKS OF 25
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix 3049107 The high-current connector features a nominal voltage rating of 1000 V and a maximum current capacity of 76 A. It has one connection point secured via a bolt connection method. The cross-sectional area is rated at 16 mm2, suitable for mounting types NS 35/7,5 or NS 35/15, and is characterized by a gray color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
1000 Volt
Terminal Block Fused
Not Fused
Terminal Block Number of Levels
1
Terminal Block Number of Connections
1
Terminal Block Connection Method
Bolt Connection
Terminal Block Component Color
Gray
Terminal Block Width
13 mm
Terminal Block Grounded
Not Grounded
Terminal Block Amperage
76 Amp
Terminal Block High-current
High-current Terminal Block
Component
Terminal block
Manufacturer
Phoenix Contact
Sub Component
Bolt connection terminal block
Sub Component
High Current Connectors
Features
Comprehensive, supplementary accessories
For connecting up to four conductors
Downloads
Phoenix 3049107 CAD data International.dxfPhoenix 3049107 CAD data International.pdfPhoenix 3049107 CAD data International.stpPhoenix 3049107 Manufacturers declaration English.pdfPhoenix 3049107 Manufacturers declaration International.pdfPhoenix 3049107 Manufacturers declaration International-2.pdfPhoenix 3049107 Safety note English.pdfPhoenix 3049107 Tender Text English.zip
