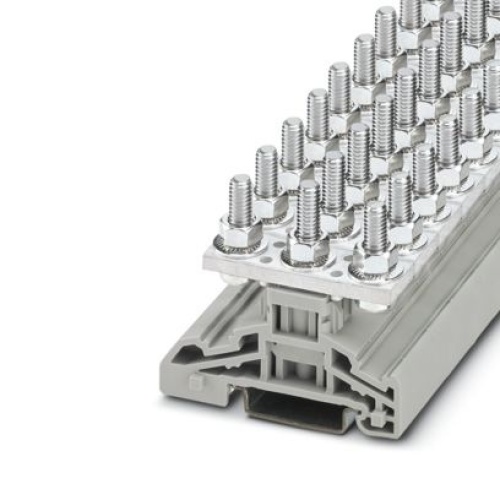

Phoenix Contact 3049547 High-current connector HV M6/2
Normally In Stock
Code: 63344
HV M6/2 Phoenix 3049547 Bolt connection terminal block Bolt connection 1000 V 125 Amp gray Terminal Blocks
Condition: New
Usually ships within 7-14 days. Call for ship time.$21.17
Sale Price
$17.64
MUST BUY IN PACKS OF 25
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix 3049547 A high-current connector features a voltage rating of 1000 V and a maximum current capacity of 125 A. It accommodates two connections via bolt attachment and has a rated cross-sectional area of 35 mm2. The mounting type is available in NS 35/7.5 and NS 35/15 configurations, with the component finished in gray color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
1000 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
16 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Connection Method
Bolt Connection
Terminal Block Component Color
Gray
Terminal Block Amperage
125 Amp
Terminal Block Grounded
Not Grounded
Terminal Block High-current
High-current Terminal Block
Component
Terminal block
Manufacturer
Phoenix Contact
Sub Component
Bolt connection terminal block
Sub Component
High Current Connectors
Features
Comprehensive range of accessories for safe and user-friendly wiring of conductors up to 120 mm²
Two different partition plates can be used for the range of single and double-bolt terminal blocks
2 and 3-pos. connection rails can be used for potential distribution
Secure connection of up to 4 conductors with cable lugs according to DIN 46234, 46235, and 46237 in a small amount of space
Spring washers are used to prevent hexagonal nuts from loosening

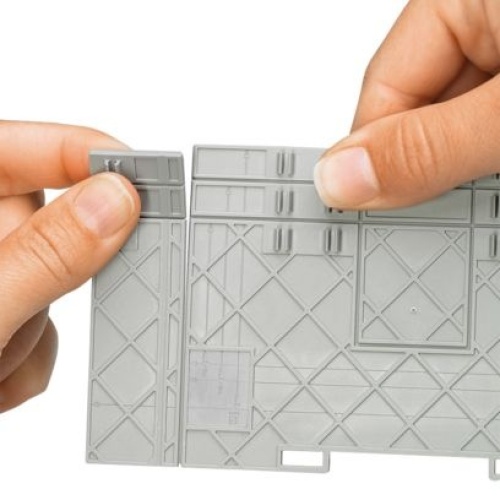

The feed-through window provided in the partition plates can be easily removed for mounting the connection rails
Downloads
Phoenix 3049547 CAD data International.dxfPhoenix 3049547 CAD data International.pdfPhoenix 3049547 CAD data International.stpPhoenix 3049547 Manufacturers declaration English.pdfPhoenix 3049547 Manufacturers declaration International.pdfPhoenix 3049547 Manufacturers declaration International-2.pdfPhoenix 3049547 Safety note English.pdfPhoenix 3049547 Tender Text English.zip
