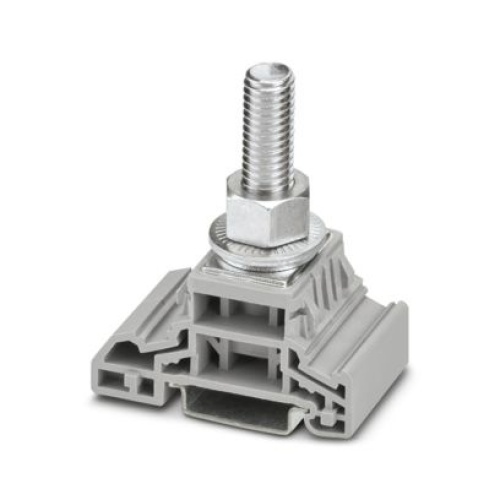

Phoenix Contact 3049505 High-current connector HV M12/1
Normally In Stock
Code: 63345
HV M12/1 Phoenix 3049505 Bolt connection terminal block Bolt connection 1000 V 269 Amp gray Terminal Blocks
Condition: New
Usually Ships Same day or Next Day$30.28
Sale Price
$25.23
MUST BUY IN PACKS OF 10
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix 3049505 A high-current connector has been identified, featuring a nominal voltage rating of 1000 V and a maximum current capacity of 269 A. It is designed for a single connection method utilizing a bolt connection. The rated cross-sectional area is 120 mm², and the mounting type is NS 35/7.5 or NS 35/15, with an additional color specification of gray.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
1000 Volt
Terminal Block Fused
Not Fused
Terminal Block Number of Levels
1
Terminal Block Number of Connections
1
Terminal Block Connection Method
Bolt Connection
Terminal Block Component Color
Gray
Terminal Block Grounded
Not Grounded
Terminal Block High-current
High-current Terminal Block
Terminal Block Width
32 mm
Component
Terminal block
Manufacturer
Phoenix Contact
Terminal Block Amperage
269 Amp
Sub Component
Bolt connection terminal block
Sub Component
High Current Connectors
Downloads
Phoenix 3049505 CAD data International.dxfPhoenix 3049505 CAD data International.pdfPhoenix 3049505 CAD data International.stpPhoenix 3049505 Manufacturers declaration English.pdfPhoenix 3049505 Manufacturers declaration International.pdfPhoenix 3049505 Manufacturers declaration International-2.pdfPhoenix 3049505 Safety note English.pdfPhoenix 3049505 Tender Text English.zip
