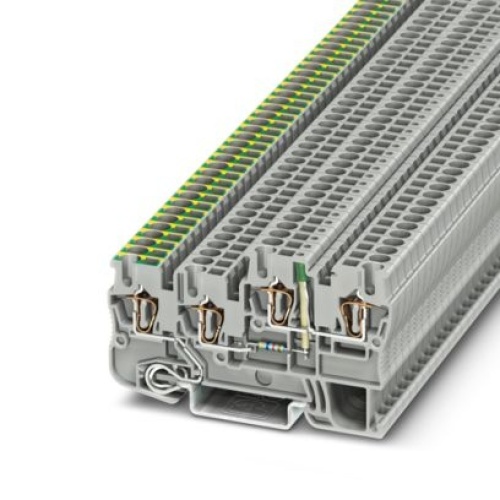

Phoenix Contact 3209141 Installation protective conductor terminal block STIO 2,5/3-PE/B/L-LA24GN/O-M
Normally In Stock
Code: 63378
STIO 2,5/3-PE/B/L-LA24GN/O-M Phoenix 3209141 Ground terminal block Spring-cage connection 24 V 18 Amp gray Terminal Blocks
Condition: New
Usually Ships Same day or Next Day$13.76
Sale Price
$11.47
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix 3209141 A protective conductor terminal block is installed with a nominal voltage of 24 V and a maximum current capacity of 18 A. It features four spring-cage connections with rated cross sections ranging from 0.08 mm2 to 4 mm2 and can be mounted using the NS 35/7,5 or NS 35/15 mounting types, while maintaining a gray color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
24 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
5.2 mm
Terminal Block Number of Connections
4
Terminal Block Number of Levels
3
Terminal Block Component Color
Gray
Terminal Block Max Wire Size
12
Terminal Block Grounded
Grounded
Terminal Block Connection Method
Spring-cage Connection
Terminal Block Min Wire Size
28
Component
Terminal block
Manufacturer
Phoenix Contact
Terminal Block Amperage
18 Amp
Sub Component
Ground terminal block
Sub Component
Installation Ground Terminal Block
Features
Three-conductor output terminal block of the same shape with PE connection in the lower level for wiring actuators
Power terminal blocks can be located at any point on the terminal strip for supply or extension purposes
Easy bridging and potential distribution using the patented plug-in bridges from the CLIPLINE complete system
Versions with LED for indicating the switching states
For space and time-saving wiring of three-conductor initiators and actuators
Potential is supplied via the STIO-IN power terminal blocks
The upper level is for signal wiring, whereas the two lower levels are used to distribute the positive and negative potential
