Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

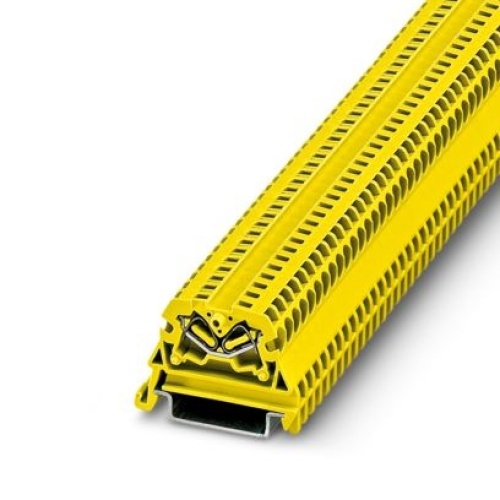

MSBV 2,5-NS 35 YE Phoenix Contact 3073186 yellow Miniature Terminal Block
Code: 63454
MSBV 2,5-NS 35 YE Phoenix 3073186 Miniature terminal block Spring-cage connection 800 V 24 Amps yellow Terminal Blocks
This product is now obsolete from the manufacturer
Below are replacement products designated by the manufacturer. See description and specs to assure they will work for your application.
Related Products
Replacement Products
Description
Mini feed-through terminal block, nom. voltage: 800 V, nominal current: 24 A, connection method: Spring-cage connection, number of connections: 2, cross section: 0.08 mm² - 4 mm², AWG: 28 - 12, width: 5.2 mm, height: 22 mm, color: yellow, mounting type: NS 35/7,5, NS 35/15
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
800 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
5.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Component Color
Yellow
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Connection Method
Spring-cage Connection
Terminal Block Min Wire Size
28
Terminal Block Amperage
24 Amp
Component
Terminal block
Manufacturer
Phoenix Contact
Sub Component
Miniature terminal block
Sub Component
Mini Feed-Through Terminal Block
