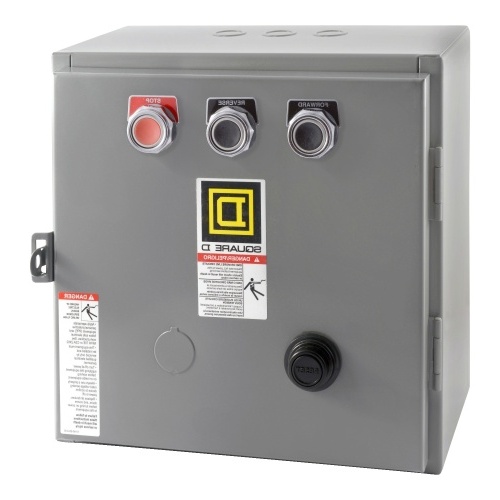

Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Schneider Electric 8736SBG4V02S - Reversing NEMA Starter - 3P, 18 Amp, 120 VAC, NEMA 1
Normally In Stock
Code: 688355
Schneider Electric 8736SBG4V02S - Reversing NEMA Starter - 3P, 18 Amp, 120 VAC, NEMA 1
Condition: New
Usually ships Same Day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$1911.67
Sale Price
$1593.06
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Schneider Electric 8736SBG4V02S - NEMA Starter, Type S, reversing, horizontal, Size 0, 18A, 5HP at 575VAC, 5kA SSCR, 3 phase, 3 pole, melting alloy overload, 120VAC coil, NEMA 1
Specifications
Starter Coil Voltage
120 VAC
Starter Enclosure Type
NEMA 1
Starter Poles
Three Pole
Manufacturer
Schneider Electric
Starter Amperage
18 Amp
Features
Type S NEMA reversing magnetic starters are used for full voltage starting, stopping, and reversing AC squirrel cage motors
NEMA 8736 reversing starters are available in NEMA Sizes 00 to 7 and have ratings up to 810 amperes
NEMA reversing starters consist of two 8502S NEMA contactors that are mechanically and electrically interlocked and an overload relay
Sizes 0-5 reversing starters are available in either horizontal or vertical arrangements
This reversing starter is arranged horizontally
This 3 pole NEMA Size 0 reversing starter has an 18 ampere rating
This three phase NEMA Size 0 reversing starter has 3 HP at 200 and 230 VAC and 5 HP at 460 and 575 VAC ratings
This reversing NEMA motor starter has a melting alloy type overload relay that uses Type B thermal units to sense over current conditions
This NEMA starter has a 5 kA maximum SCCR (Short Circuit Current Rating) per UL508A when protected by an appropriate circuit breaker or fuse
Type S motor starters are available with replaceable coils in a wide variety of voltages
This starter has a 110/120 VAC 50/60 Hz operating coil wired for separate control
A painted sheet steel NEMA 1 general purpose enclosure is used to protect this starter
Enclosure is 11.88 inches tall, 11.88 inches wide and 7.53 inches deep
A wide variety of accessories are available for Type S starters
Type S reversing NEMA motor starters are UL listed and CSA certified.
