The 9001K push button line has a large variety of operators and accessories for heavy industry applications

These operators are used in the petrochemical, metallurgy, mining, oil and gas, wastewater treatment and automotive manufacturing industries and more

Type K operators have a die cast operator that mounts in a 1.18 inch round hole

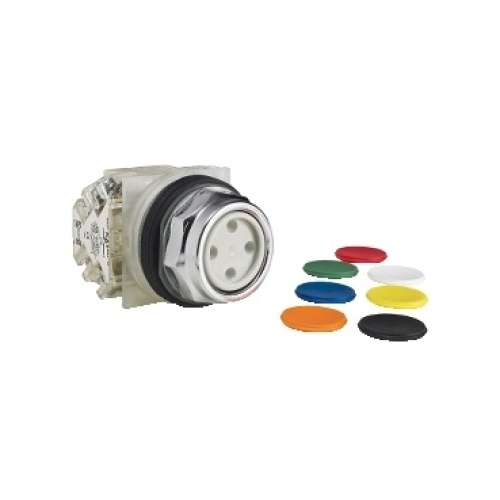

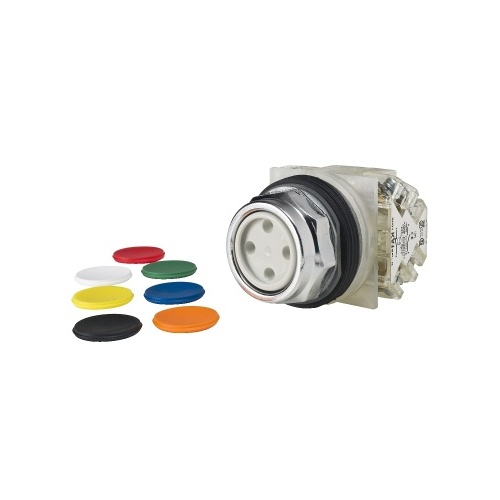

This non-illuminated push button operator has a full guard die cast ring nut

This operator has two 9001KA1 contact blocks mounted side by side on the back

Each contact block has one normally open and one normally closed contact

Contact blocks have a UL Type A600, UL Type Q600 and a 10A resistive VAC rating

The contacts in these contact blocks are double break direct acting

Contact blocks will accept up to two 12AWG to 24 AWG solid or stranded wires

The contact block terminals are protected to meeting VDE 0106 Part 100

This operator is supplied with one each of the following color inserts: black, red, green, yellow, orange, blue and white

When properly installed this opertor is UL listed for Types 1, 2, 3, 3R, 4, 6, 12 and 13 environments

This operator is UL Listed and CSA certified

\A comprehensive range of illuminated pushbuttons, pilot lights, emergency stop buttons, selector switches, joystick controllers and accessories to fit your needs.\,\The modular range of Ø 30mm metal control and signaling provides robust and reliable solutions for a wide range of heavy industry applications.\
