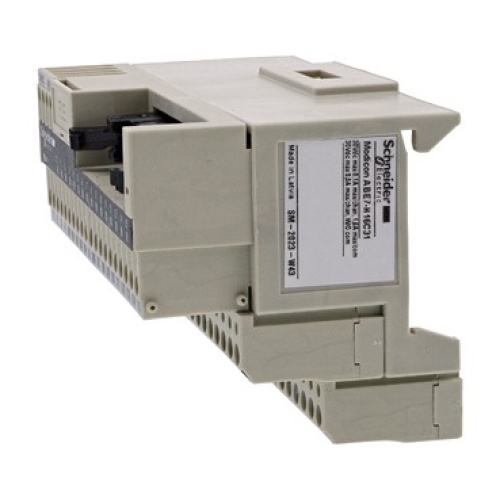

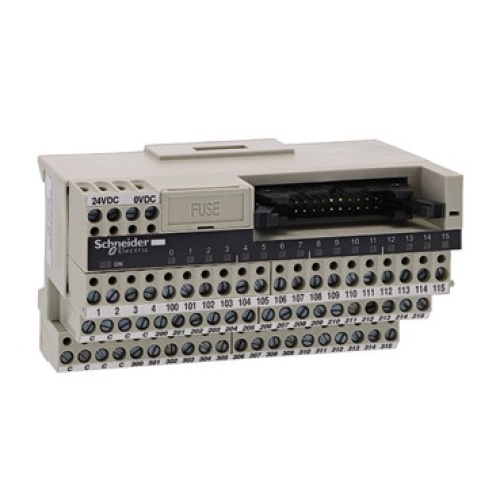

Schneider Electric ABE7H16C31 - passive connection sub-base ABE7 - 16 inputs or outputs - Led
Normally In Stock
Code: 692290
Schneider Electric ABE7H16C31 - passive connection sub-base ABE7 - 16 inputs or outputs - Led
Condition: New
Usually ships Same Day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$379.09
Sale Price
$315.91
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Schneider Electric ABE7H16C31 - passive connection sub-base ABE7 - 16 inputs or outputs - Led
Specifications
Manufacturer
Schneider Electric
Component
Software License
Features
This product is part of the Modicon ABE7 range, an offer of connection sub-bases for Telefast pre-wired system
This miniature passive connection sub-base provides 16 modularity input/output channels
It has 3 terminals per channel
It is a sub base with a maximum supply current of 1.8A and a rated supply voltage of 19V to 30V
It is furnished with screw clamp terminals for electrical connection
It is an IP2x rated product
It weighs 0.26kg
It is suitable for all types of industrial applications
This product is certified by GL, BV, CSA, UL, DNV and LROS
The fixing is done by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit)
Modicon ABE7 means greater simplicity to rationalise wiring in automation system equipment
Pre-wired system enabling connection and adaptation of control signals of PLC cards equipped with HE10 connectors.
