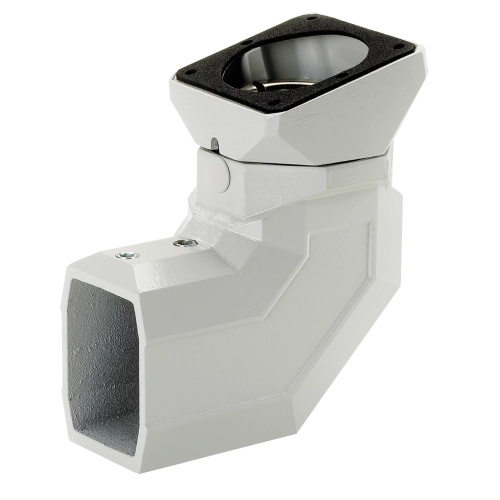

Hoffman CCS2FEC15LG COMPACT HMI Series 2 Flange Elbow Coupling 15 Degree
Normally In Stock
Code: 6938
Hoffman CCS2FEC15LG COMPACT Series 2 Pendant Arm Flange Elbow Coupling (15-Degree). Flange Elbow for mounting enclosure at 15-degree incline angle to tube at 90 degrees with 300 degree turning range. Maintenance-free bearing is steel and polyamide.
Condition: New
Usually ships Same Day or Next Day$979.49
Sale Price
$753.45
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Hoffman CCS2FEC15LG COMPACT Series 2 Pendant Arm Flange Elbow Coupling (15-Degree). Flange Elbow for mounting enclosure at 15-degree incline angle to tube at 90 degrees with 300 degree turning range. Maintenance-free bearing is steel and polyamide.
Specifications
Pendant Arm Component Mounting
Enclosure to Tube
Pendant Arm Component Composition
Aluminum
Component
Elbow
Line
Compact Series 2
Manufacturer
Hoffman
Pendant Arm Component Rotation
300 Degrees
Pendant Arm Component Angle
15 Degrees
Features
Installation hardware, mounting fasteners and gasket included
Assembled Compact Series 2 HMI Arm System has a max weight load of 101 lb. (45.8 kg)
Enclosure is mounted at a 15-degree incline angle
Coupling can rotate 300 degrees with stop
Downloads

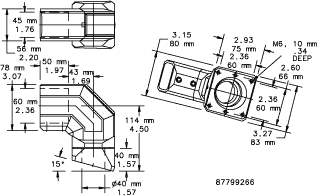

Hoffman CCS2FEC15LG 2D DXF CAD.zipHoffman CCS2FEC15LG 3D STEP CAD.zipHoffman CCS2FEC15LG CAD Drawing.zipHoffman CCS2FEC15LG Declaration of Compliance.pdfHoffman CCS2FEC15LG Dimension Drawing.gifHoffman CCS2FEC15LG Instruction Manual.pdfHoffman CCS2FEC15LG Spec Sheet.pdfHoffman CCS2FEC15LG User Manual.pdf
