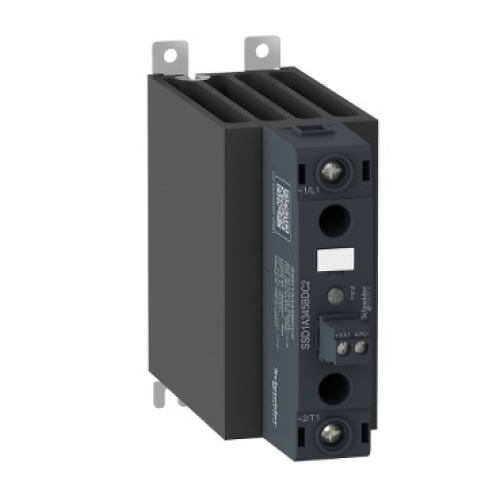

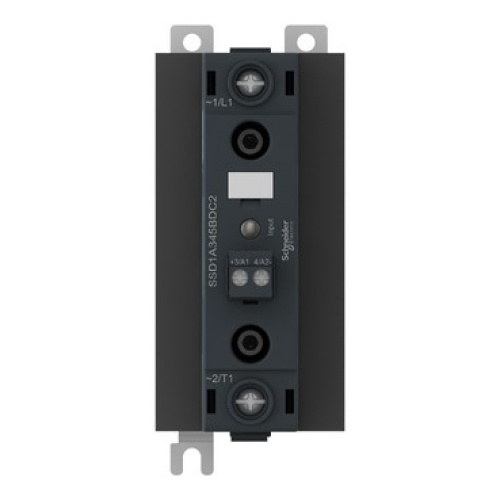

Schneider Electric SSD1A345M7C2 Solid State Relay - 45A, DIN rail mount, zero voltage switching, input 90...280 V AC DC, output 48...600 V AC
Normally In Stock
Code: 696190
Schneider Electric SSD1A345M7C2 Solid State Relay - 45A, DIN rail mount, zero voltage switching, input 90...280 V AC DC, output 48...600 V AC
Condition: New
Usually ships Same Day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$149.12
Sale Price
$124.27
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Schneider Electric SSD1A345M7C2 - single phase panel, Harmony Solid State Relays, 45A, DIN rail mount, zero voltage switching, input 90...280 V AC DC, output 48...600 V AC
Specifications
Component
Solid state relay
Manufacturer
Schneider Electric
Features
This solid state DIN rail mounted relay belongs to the Schneider Electric Harmony solid state relays range

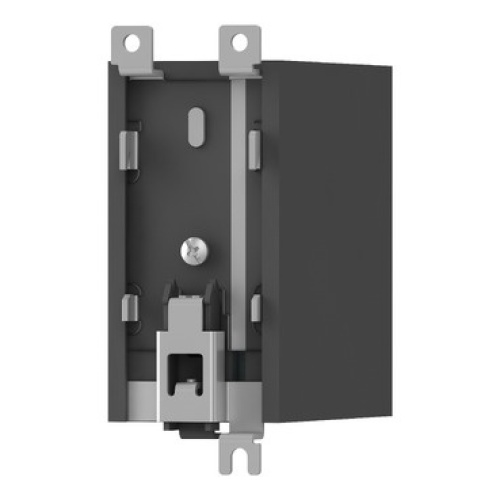

This electrical relay mounts on 35mm DIN rail and comes with a secure mounting latch
This is a 45A power rated relay with relay type configuration and zero voltage switching
This single-phase relay has a IP20 built-in heat sink and a built-in transient overvoltage protection
It is controlled with a 90Vdc/Vac to 280Vdc/Vac input, has a rated load voltage of 48Vac to 600Vac
It also has a LED input voltage status indicator and clip-in legend for easy identification
It weighs 0.507Kg and its dimensions are, 45mm wide, 154.4mm deep, 111.5mm high
It is the ideal solution for packaging, plastic molding, textile, and heating furnace applications
This relay conforms to international standards like EN/IEC 60068, IEC 61373, UL 508, CSA C22.2 No 14-13 and certifications like UL and CSA
Besides the existing standard screw connection for input and output, SSD provides more wiring options like the spring or screw pluggable input connectors, and telescopic or clamp cage output terminals.
