Phoenix Contact 2880561 Surge protection device C-SAT-BOX
Normally In Stock
Code: 72217
CSMA-LAMBDA/4-2.0-BS-SET Phoenix 2800491 Surge protection for transceiver systems SMA connector,SMA connector, female connector,SMA connector, male connector Surge protection device Surge Protection
Condition: New
Usually ships Same Day or Next Day$323.23
Sale Price
$269.36
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

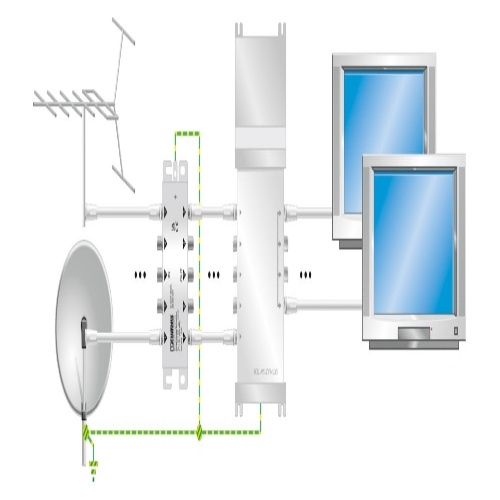

Phoenix Contact 2880561 Surge protection for antenna distributors in satellite systems provides vital shielding against electrical surges, safeguarding critical components with a robust shield, while signal transmission continues uninterrupted, facilitated by five dedicated channels for both satellite and terrestrial antenna signals, all supported by an external grounding point.
Specifications
Arrester Class according to IEC
C1
Arrester Class according to IEC
C2
Arrester Class according to IEC
C3
Arrester Class according to IEC
D1
Arrester Class according to IEC
B2

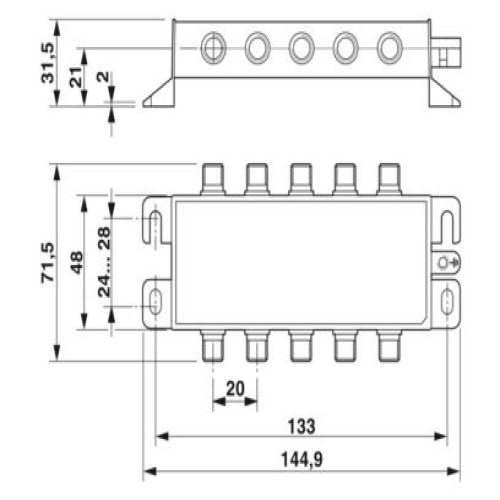

Width
144.9 mm
Maximum Continous Voltage
20 V DC
Direction of Action
Line-Shield-Earth Ground
Manufacturer
Phoenix Contact
Mounting (RF Protection)
Screw mounting
Frequency (RF Protection)
47 MHz - 2.5 GHz
Nominal Discharge Current
2.5 kAmp
Nominal Current
400 mAmp
Features
Easy installation with surface mounting
Space-saving, thanks to the compact design

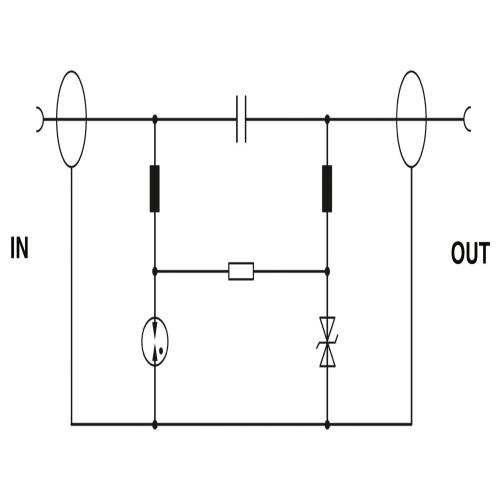

Protection of digital and analog signals with universal protective circuit
No signal interference with optimum transmission properties
Downloads
Phoenix 2880561 CAD data International.dxfPhoenix 2880561 CAD data International.pdfPhoenix 2880561 CAD data International.stpPhoenix 2880561 Flyer English.pdfPhoenix 2880561 Manufacturers declaration International.pdfPhoenix 2880561 Package Slip International.pdfPhoenix 2880561 Product Information English.pdfPhoenix 2880561 Software International.zipPhoenix 2880561 Surge Protection English.pdfPhoenix 2880561 Tender Text English.zip
