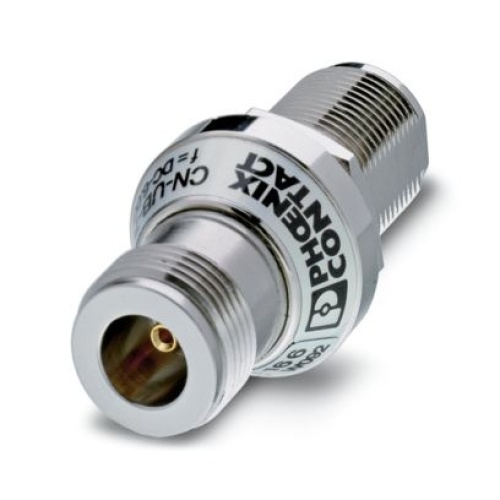

Phoenix Contact 2803166 Surge protection device CN-UB-70DC-6-BB
Normally In Stock
Code: 72226
Phoenix 2803166 Surge protection for transceiver systems N connector 50 Ω,N connector, female Surge protection device Surge Protection
Condition: New
Usually ships Same Day or Next Day$143.52
Sale Price
$119.60
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2803166 A specialized attachment plug provides surge protection for coaxial signal interfaces, utilizing an N connector that supports a female/female connection type.
Specifications
Arrester Class according to IEC
C2
Arrester Class according to IEC
C3
Arrester Class according to IEC
D1

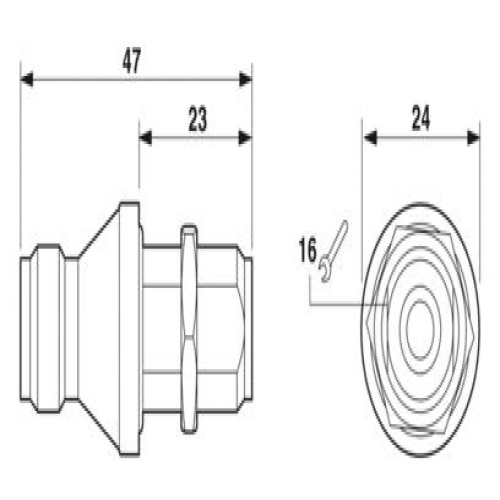

Width
24 mm
Maximum Continous Voltage
70 V DC
Impulse Discharge Current
1 kA

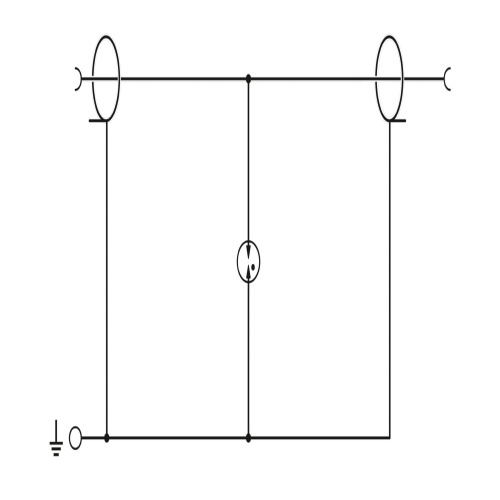

Direction of Action
Line-Shield-Earth Ground
Manufacturer
Phoenix Contact
Mounting (RF Protection)
Connection-specific intermediate plugging
Frequency (RF Protection)
0 Hz - 6 GHz
Nominal Discharge Current
5 kAmp
Nominal Current
10 Amp
Features
Mounting plate enables mounting, e.g., in a control cabinet
Downloads
Phoenix 2803166 CAD data International.dxfPhoenix 2803166 CAD data International.stpPhoenix 2803166 CAD data International.wrlPhoenix 2803166 Flyer English.pdfPhoenix 2803166 Manufacturers declaration International.pdfPhoenix 2803166 Package Slip International.pdfPhoenix 2803166 Product Information English.pdfPhoenix 2803166 Software International.zipPhoenix 2803166 Surge Protection English.pdfPhoenix 2803166 Tender Text English.zip
