Phoenix Contact 2924236 Repeater power supply MACX MCR-EX-SL-RPSSI-2I-SP
Normally In Stock
Code: 72395
MACX MCR-EX-SL-RPSSI-2I-SP MACX MCR-EX-SL-RPSSI-2I-SP Phoenix Contact 2924236 Input/output/power supply Repeater power supply
Condition: New
Usually ships within 7-14 days. Call for ship time.$695.44
Sale Price
$579.53
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

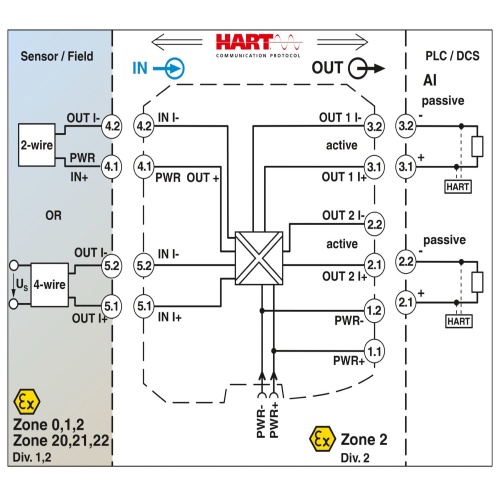

Phoenix Contact 2924236 An ex-measuring transducer repeater power supply and input signal conditioner sends electrically isolated signals from the safe area to two loads in the Ex area, transmitting supplied or active signals ranging from 0 mA to 20 mA. The device features one channel operation, is HART-compatible, comes with a standard configuration and three-way isolation, meets SIL and ISO standards for safety integrity levels and performance, has a systematic capability of three, and utilizes push-in connections.
Specifications
Manufacturer
Phoenix Contact
Conditioner Supply Voltage
24 VDC
Conditioner Output Signal Range
0 mA - 20 mA
Conditioner Output Signal Range
4 mA - 20 mA
Conditioner Output Signal Type
Current
Conditioner Input Signal Type
Current
Conditioner Number of Channels
1
Conditioner Connection Type
Push-in connection
Component
Repeater
Features

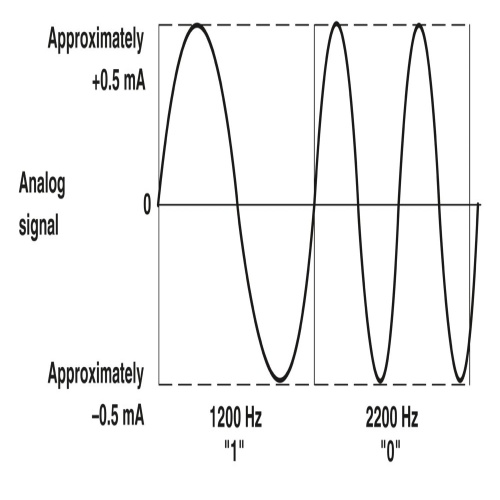

Bidirectional HART transmission (both outputs)
Measuring transducer supply voltage > 16 V
Two electrically isolated 0/4 mA ... 20 mA (active) outputs
0/4 mA ... 20 mA input, intrinsically safe, [Ex ia], powered and not powered
Error indication according to NAMUR NE 43
SIL 2 according to IEC/EN 61508
Safe electrical isolation between input, outputs, and supply
Power supply possible via DIN rail connector
Installation in zone 2 permitted
Plug-in connection terminals, push-in connection technology
Housing width: 12.5 mm
Minimal power dissipation
High transmission accuracy
Downloads
Phoenix 2924236 Application Note English.pdfPhoenix 2924236 CAD data International.dxfPhoenix 2924236 CAD data International.pdfPhoenix 2924236 CAD data International.stpPhoenix 2924236 Certification English.pdfPhoenix 2924236 Certification International.pdfPhoenix 2924236 Data Sheet English.pdfPhoenix 2924236 Manual English.pdfPhoenix 2924236 Manufacturers declaration English.pdfPhoenix 2924236 Manufacturers declaration International.pdfPhoenix 2924236 Manufacturers declaration International-2.pdfPhoenix 2924236 Package Slip International.pdfPhoenix 2924236 Tender Text English.zip
