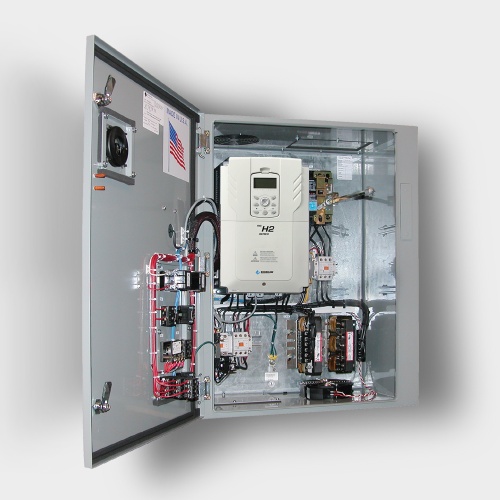

Benshaw RSI050H2XHD4CBA3R - H2X Series Prepackaged Low Voltage Drive, 460 VAC, 67 Amp, 50 HP, 60Hz
Normally In Stock
Code: 759817
Benshaw RSI050H2XHD4CBA3R - Heavy Duty (50HP/67A/60Hz/460VAC) multi-purpose drive - NEMA Type 3R ventilated enclosure, 125 amp circuit breaker, door-mounted LCD/keypad for plain English set-up, operation and fault diagnosis - Heavy Duty: 50HP 480V
Condition: New
Usually ships Same Day or Next Day$19981.20
Sale Price
$12588.16
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Benshaw RSI050H2XHD4CBA3R - Benshaw H2X Series Prepackaged Low Voltage Drives are high-performance variable frequency drives designed to suit a wide variety of applications. All drives in the series feature a rugged enclosure, high quality door-mounted pilot devices and RS-485 Modbus – RTU, BACnet, Metasys-N2 communication as standard. Software features include:||WinDRIVE compatibility|Quick start menu on power up|V/Hz, sensorless vector, slip compensation control modes|Auto tuning|Macro selection (pump, fan, or constant torque)|Torque limits|PID control|Regen avoidance|Kinetic Energy Buffering(KEB), Ride through|Decel brake control
Specifications
VFD Horsepower Output
50 HP
Manufacturer
Benshaw
VFD Amperage Output
67 Amp
Component
Prepackaged Low Voltage Drive
Features
Heavy duty rated packaged H2 Series drive
NEMA 3R ventilated enclosure
65 KAIC Circuit breaker with rotary operator
Stock models up to 200HP
Door mounted: - Keypad - Start/Stop push buttons - Run indicator light - Fault indicator light - Speed potentiometer - Hand-Off-Auto selector switch
Control Modes
- V/Hz. (Linear, Squared, User defined)
- Sensorless Vector (IM or PM) with Auto Tuning (Static or Rotational)
- Slip Compensation
Application Macros
- Pump
- Fan
- Constant Torque
Communications (built in)
- BACnet
- Metasys-N2
PID Control (Single Loop, Dual Loop) with:
- Sleep, Sleep Boost and Wake Up
- Broken Pipe Detection
- Under Load Detection
- Select from 40 units of measure
Pump Clean Operation
Time Event Scheduling (24/7 Programmable Operation)
Pump Load Tuning
Energy Saving Operation
Flow Compensation
Backspin Timer
Pre-fill and Soft-fill
Fire mode input
Oil Pump Starter Control (compressor systems)
