Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

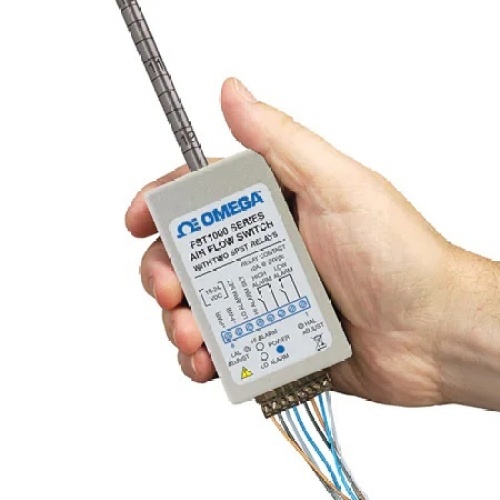

Omega FST1001R AIR VEL REMOTE PROBE 0-5000FPM
Normally In Stock
Code: 780765
Omega FST1001R AIR VEL REMOTE PROBE 0-5000FPM
Condition: New
Usually ships Same Day or Next Day$691.01
Sale Price
$575.84
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Flow Switch, Economical, Air, 0 FPM to 5000 FPM, 2 SPST N.O Relays, 1/4 ", Compression Fitting, ± 2 % Accuracy, 304 SS, 12 " Wire L, Remote Probe, FST1000 Series, Each
Specifications
(Instrument-Sensor) Medium
Air
Component
Flow Switch
Manufacturer
Omega Engineering
Features
Air Velocity Range up to 10,000 FPM (50.8 m/sec)
2% Full Scale Accuracy
Two Sensor Probe Configurations (Fixed and Remote)
Hot Wire Air Velocity Sensor Design
Accuracy± 2 %
Accuracy DetailAccuracy: 2% FS (air velocity)
Additional Features 1
Alarm Deadband0.05
Electrical ConnectionScrew Terminal
Height3.5 in
Length1.25 in
Linear Flow Rate, Min0 FPM
Materials304 Stainless Steel
Media CompatibilityAir
Operating Temperature, Max50 °C
Operating Temperature, Min0 °C
Probe Diameter0.25 in
Probe Length12 in
Process Connection Size1/4 in
Process Connection TypeCompression Fitting
Process Temperature, Max93 °C
Process Temperature, Min-40 °C
Response Time250 msec
Supply Power Note15 to 24 Vdc @ 200 mA
Supply Voltage15 to 24 Vdc
Switch Rating10 A
Switch Rating Note2 SPST, 10A @ 24 Vdc, 10A @ 250 Vac (Resistive)
Switch TypeSPST NO
Weight5.6 oz
Width2 in
