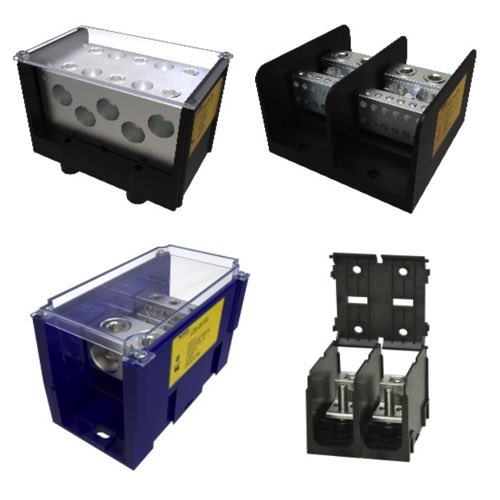

Ilsco's power distribution blocks improve the power distribution within many systems. They do this in commercial, industrial, and utility settings. Power distribution blocks in most instances are placed in cabinets or boxes that are also part of the conduit/raceway system. These blocks simplify making connections, especially in terms of making multiple connections. After these blocks come in, the "fat" wire of a power circuit is connected to one side, and then power is "tapped" off that fat wire to feed other wires in the cabinet or system that aren't part of the main power-pulse.
The Ilsco brand constructs power distribution blocks using materials like aluminum and copper that convey excellence and durability along with a strong electrical current. One of the key features of these power distribution blocks is an installation-ready profile that lets electricians work in the kind of confined spaces that are all too common in a typical electrical panel.
Products
Sort By:
Ilsco PDBU-55-600-1 Power Distribution Block - Aluminum, 600-250 MCM, Solid, 600 V, 1/4", 175 Amp, Black
$867.06
$892.90
Ilsco PDBU-55-600-1 - Power Distribution Block, 1 Pole, 5 Ports Per Pole Line and Load Side, UL Listed for 600V, 175 Amps. Line Conductor Range 600-250 kcmil, Mechanical Connections, Aluminum Material with Tin Finish, Copper Conductor. Mounting Hole Spacing 3", Drive Size 3/8", Valox Enclosure, Temperature Rating 90°C, UL 1953 Listed. Ideal for industrial applications.
Ilsco PDBU-55-500-1 Power Distribution Block - Aluminum, 500-3/0 AWG, Solid, 600 V, 1/4", 1900 Amp, Black
$857.68
$883.24
Ilsco PDBU-55-500-1 - The Power Distribution Block is a 1 Pole, Dual Rated connector with a 600V voltage rating and 5 ports per pole on both line and load sides. UL and CSA listed, with a temperature rating of 90°C. Suitable for 500-3/0 line and load conductor ranges made of copper and aluminum. Ideal for industrial applications.
Ilsco PDBU-49-500-1 Power Distribution Block - Aluminum, 500-4 AWG, Stranded, 600 V, 1/4", 1600 Amp, Black
$755.38
$777.89
Ilsco PDBU-49-500-1 - This Power Distribution Block is UL and CSA listed with a voltage rating of 600V. It features 4 ports per pole on the line side and 9 ports per pole on the load side. Made of aluminum with a tin finish, it can accommodate a conductor range of 500 kcmil - 4 Str. A reliable solution for various electrical applications.
Ilsco PDBU-428-500-1 Power Distribution Block - Aluminum, 500-4 AWG, Stranded, 600 V, 1/4", 1520 Amp, Black
$740.10
$762.15
Ilsco PDBU-428-500-1 - Power Distribution Block, Dual Rated with 1 Pole, UL and CSA certified. Line Conductor Range 500-4, Load Range 4-14. Aluminum construction with Tin finish connectors and Copper conductors. Rated for 600V, 1520 Amps. Mounting hole spacing of 3 inches. Suitable for a variety of applications. Meets UL 1953 specifications.
Ilsco PDBU-412-500-1 Power Distribution Block - Aluminum, 500-4 AWG, Solid, 600 V, 1/4", 1520 Amp, Black
$774.35
$797.41
Ilsco PDBU-412-500-1 - This Power Distribution Block is Dual Rated, with a Line Conductor Range of 500-4 and Load Range of 4/0-6. It features 4 Ports Per Pole on the Line side and 12 Ports Per Pole on the Load side. UL and CSA listed, with a Voltage Rating of 600V and a Connector Amperage Rating of 1520 Amps. Made of Aluminum with Tin Connector Finish. Drive Type Main: Internal Hex, Drive Size Main: 3/8. Drive Type Tap: Internal Hex, Drive Size Tap: 5/16. Mounting Hole Type: Thru, Mounting Hole Diameter: 0.281". Temperature Rating: 90°C. Suitable for various electrical applications.
Ilsco PDBU-26-750-1 Power Distribution Block - Aluminum, 750-250 MCM, Solid, 600 V, 1/4", 1520 Amp, Black
$671.18
$691.18
Ilsco PDBU-26-750-1 - Aluminum Power Distribution Block with 1 pole, dual rated for 600V, 1520A. Features 2 line ports and 6 load ports per pole, mechanical connection, 90°C temperature rating. UL and CSA listed, NEMA Code S-588-4. Suitable for solid and stranded copper/aluminum conductors ranging from 750kcmil to 6 Str. Mounting hole spacing: 3 inches.
Ilsco PDB-26-500-2 Power Distribution Block - Aluminum, 500-4 AWG, Solid, 600 V, 1/4", 760 Amp, Black
$472.26
$486.33
Ilsco PDB-26-500-2 - A dual-rated Power Distribution Block with 2 poles, 2 ports per pole on the line side, and 6 ports per pole on the load side. Constructed of black aluminum with tin connector finish. UL/CSA approved for 600V, 90°C. Suitable for solid and stranded copper/aluminum conductors ranging from 500 kcmil to 14 Sol/Str. Mounting holes for 1/4 bolts, accommodating up to 8 conductors. Ideal for mechanical connections in industrial settings. Amperage rated at 760 Amps. Enclosure made of Valox. NEMA Code S-588-4, CSA File Number LR-29601. Meets UL 1059 Recognized, CSA C22.2 No. 65-03 standards.
Ilsco PDB-212-500-2 Power Distribution Block - Aluminum, 500-4 AWG, Solid, 600 V, 1/4", 760 Amp, Black
$505.98
$521.06
Ilsco PDB-212-500-2 - This Power Distribution Block is a Dual Rated, 2 Pole block with a Line Conductor Range of 500-4 and Load Range of 4-14. It is UL and CSA listed, with a 600V Voltage Rating and 760 Amps Amperage Rating for CU conductors. Constructed of Aluminum with Tin finish, it features 2 Ports per Pole Line Side and 12 Ports per Pole Load Side. Mounting Hole Diameter is 4.8514mm, and Mounting Hole Spacing is 120.65mm. It is suitable for solid and stranded conductors, with a Temperature Rating of 90°C. Ideal for electrical connections requiring reliability and safety.
Ilsco PDB-16-500-2 Power Distribution Block - Aluminum, 500-6 AWG, Solid, 600 V, 1/4", 380 Amp, Black
$401.98
$413.95
Ilsco PDB-16-500-2 - The Power Distribution Block is a reliable dual-rated aluminum block for line conductor range 500-6 and load range 2/0-14. Features 1 port per pole on the line side and 6 ports per pole on the load side. UL and CSA approved, with a 600V voltage rating and 380A amperage rating. Suitable for various applications.
Ilsco PDB-16-350-2 Power Distribution Block - Aluminum, 350-6 AWG, Solid, 600 V, 1/4", 310 Amp
$397.43
$409.27
Ilsco PDB-16-350-2 - The Power Distribution Block is a Dual Rated, 2 pole block with a Line Conductor Range of 350-6 and Load Range of 2/0-14. It features 1 port per pole on the Line side and 6 ports per pole on the Load side, with a Voltage Rating of 600V and Temperature Rating of 90°C. UL and CSA approved, with a Connector Finish of Tin and Aluminum construction. Ideal for various electrical applications.
Ilsco PDB-162-500-2 Power Distribution Block - Aluminum, 500-4 AWG, Solid, 600 V, #10, 380 Amp, Black
$340.85
$351.00
Ilsco PDB-162-500-2 - This UL and CSA approved Power Distribution Block is dual rated for 600V with a conductor range of 500kcmil to 4 Str. Made of aluminum with tin finish, it features 1 port per pole on the line side, 6 ports per pole on the load side, and a mounting hole spacing of 3.375 inches. Ideal for industrial applications, it has a voltage rating of 600V and an amperage rating of 380 Amps.
Ilsco PDB-162-500-1 Power Distribution Block - Aluminum, 500-4 AWG, Solid, 600 V, #10, 380 Amp, Black
$202.34
$208.36
Ilsco PDB-162-500-1 - Power Distribution Block, Dual Rated, 1 Pole, 6 Ports Load Side, 1 Port Line Side. Aluminum construction with tin finish, 600V, 380A rating. UL, CSA, NEMA S-588-4 compliant. Solid and stranded conductor compatibility. Mounting hole spacing 3.375" with #10 mounting bolts. Suitable for 90°C temperature applications. Ideal for industrial electrical setups.
