Industrial Leased Line Modems

Mulogic UCM-3220 Universal Data Modem for leased line and dial up networks. 100-240VAC (5 watts max) with power adapter for wall. The UCM-3220 is low speed (up to 14.4 kbps) 2-wire or 4-wire full-duplex. Operating temperature of 32 F to 122 F. Extend temperatur available -4 F to 140 F,Supports both synchronous and asynchronous data formats. When used as a leased line modem,the UCM-3220 can use the dial-up network for back-up: If the leased line degrades in quality or fails completely,then the UCM-3220 will restore the connection over the dial-up line. With the dial-up line in use,the leased line connection will be constantly monitored to check when normal leased line operation can be restored. The UCM-3220 has been designed to suit a vast majority of voice-band data-modem applications. It supports all current modulation standards varying from V.21 to V.32bis and can be used on point-to-point and multipoint lines.

Mulogic DLM336DVR2 Rack Card Dial-Up Serial Modem 24V-48Vdc internal power supply (18-64Vdc) or (100-240Vac with power adapter sold sepreratly). The MuLogic DLM-336 is a voiceband modem for reliable data communication over dial-up lines and 2-wire leased lines. The modem supports full and half duplex operation modes for data transmission. RJ-11 connector for telephone set(PSTN line at RJ-11 connector). Line impedance 600 Ohms,Transmit level: -9 .. -15 dBm,Receive threshold -43 dBm On,-48 dBm Off. The DLM-336 can also be used as a Class1 Fax modem for communication with group 3 fax machines. Although the DLM-336 is mainly intended for dail-up line applications,the modem can also be usOperating temperature of -13 F to 158 F.

Mulogic DLM336DVR1 Rack Card Dial-Up Serial Modem 12V-24Vdc internal power supply (9-36Vdc) or (100-240Vac with power adapter sold sepreratly). The MuLogic DLM-336 is a voiceband modem for reliable data communication over dial-up lines and 2-wire leased lines. The modem supports full and half duplex operation modes for data transmission. RJ-11 connector for telephone set(PSTN line at RJ-11 connector). Line impedance 600 Ohms,Transmit level: -9 .. -15 dBm,Receive threshold -43 dBm On,-48 dBm Off. The DLM-336 can also be used as a Class1 Fax modem for communication with group 3 fax machines. Although the DLM-336 is mainly intended for dail-up line applications,the modem can also be usOperating temperature of -13 F to 158 F.

Mulogic DLM336DVR2 Standalone Dial-Up Serial Modem 24V-48Vdc internal power supply (18-64Vdc) or (100-240Vac with power adapter sold sepreratly). The MuLogic DLM-336 is a voiceband modem for reliable data communication over dial-up lines and 2-wire leased lines. The modem supports full and half duplex operation modes for data transmission. RJ-11 connector for telephone set(PSTN line at RJ-11 connector). Line impedance 600 Ohms,Transmit level: -9 .. -15 dBm,Receive threshold -43 dBm On,-48 dBm Off. The DLM-336 can also be used as a Class1 Fax modem for communication with group 3 fax machines. Although the DLM-336 is mainly intended for dail-up line applications,the modem can also be usOperating temperature of -13 F to 158 F.

Mulogic DLM336DVR1 Standalone Dial-Up Serial Modem 12V-24Vdc internal power supply (9-36Vdc) or (100-240Vac with power adapter sold sepreratly). The MuLogic DLM-336 is a voiceband modem for reliable data communication over dial-up lines and 2-wire leased lines. The modem supports full and half duplex operation modes for data transmission. RJ-11 connector for telephone set(PSTN line at RJ-11 connector). Line impedance 600 Ohms,Transmit level: -9 .. -15 dBm,Receive threshold -43 dBm On,-48 dBm Off. The DLM-336 can also be used as a Class1 Fax modem for communication with group 3 fax machines. Although the DLM-336 is mainly intended for dail-up line applications,the modem can also be usOperating temperature of -13 F to 158 F.

Mulogic DLM336DVR2 DIN Rail Mount Dial-Up Serial Modem 24V-48Vdc internal power supply (18-64Vdc) or (100-240Vac with power adapter sold sepreratly). The MuLogic DLM-336 is a voiceband modem for reliable data communication over dial-up lines and 2-wire leased lines. The modem supports full and half duplex operation modes for data transmission. RJ-11 connector for telephone set(PSTN line at RJ-11 connector). Line impedance 600 Ohms,Transmit level: -9 .. -15 dBm,Receive threshold -43 dBm On,-48 dBm Off. The DLM-336 can also be used as a Class1 Fax modem for communication with group 3 fax machines. Although the DLM-336 is mainly intended for dail-up line applications,the modem can also be usOperating temperature of -13 F to 158 F.

Mulogic DLM336DVR1 DIN Rail Mount Dial-Up Serial Modem 12V-24Vdc internal power supply (9-36Vdc) or (100-240Vac with power adapter sold sepreratly). The MuLogic DLM-336 is a voiceband modem for reliable data communication over dial-up lines and 2-wire leased lines. The modem supports full and half duplex operation modes for data transmission. RJ-11 connector for telephone set(PSTN line at RJ-11 connector). Line impedance 600 Ohms,Transmit level: -9 .. -15 dBm,Receive threshold -43 dBm On,-48 dBm Off. The DLM-336 can also be used as a Class1 Fax modem for communication with group 3 fax machines. Although the DLM-336 is mainly intended for dail-up line applications,the modem can also be usOperating temperature of -13 F to 158 F.

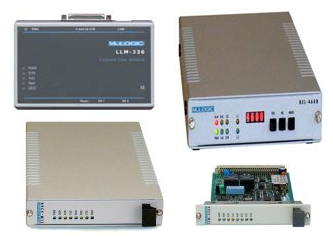

Mulogic LLM336 Rack Card Voiceband Serial Modem 24V-48Vdc internal power supply (18-64Vdc) or (100-240Vac with power adapter sold sepreratly). This Serial Modem is for Conditioned Leased Lines(Analog) or Copper Lines support full and half duplex operation modes and can be used on point-to-point and multipoint lines over a communications line(2 wire or 4 wire operation). Unique feature that makes it possible to have half duplex and multipoint operation under control of the data signals only which allows for RS232,RS422 and RS485 devices (that cannot control the RTS signal) to control the modem carrier just by sending data. RS422/485 interface. Supports Modbus RTU,Modbus ASCII,DNP3,IEC 60870.5 and more. Under controlled circumstances the LLM-336.Eth can even operate on multipoint networks. For multipoint operation on unconditioned copper cable,the transmitter impedance is controlled and the receiver can be switched to high impedance. Operating temperature of -13 F to 158 F. Configured by means of DIP switches.

Mulogic LLM336 Rack Card Voiceband Serial Modem 12V-24Vdc internal power supply (9-36Vdc) or (100-240Vac with power adapter sold sepreratly). This Serial Modem is for Conditioned Leased Lines(Analog) or Copper Lines support full and half duplex operation modes and can be used on point-to-point and multipoint lines over a communications line(2 wire or 4 wire operation). Unique feature that makes it possible to have half duplex and multipoint operation under control of the data signals only which allows for RS232,RS422 and RS485 devices (that cannot control the RTS signal) to control the modem carrier just by sending data. RS422/485 interface. Supports Modbus RTU,Modbus ASCII,DNP3,IEC 60870.5 and more. Under controlled circumstances the LLM-336.Eth can even operate on multipoint networks. For multipoint operation on unconditioned copper cable,the transmitter impedance is controlled and the receiver can be switched to high impedance. Operating temperature of -13 F to 158 F. Configured by means of DIP switches.

Mulogic LLM336 Standalone Voiceband Serial Modem 24V-48Vdc internal power supply (18-64Vdc) or (100-240Vac with power adapter sold sepreratly). This Serial Modem is for Conditioned Leased Lines(Analog) or Copper Lines support full and half duplex operation modes and can be used on point-to-point and multipoint lines over a communications line(2 wire or 4 wire operation). Unique feature that makes it possible to have half duplex and multipoint operation under control of the data signals only which allows for RS232,RS422 and RS485 devices (that cannot control the RTS signal) to control the modem carrier just by sending data. RS422/485 interface. Supports Modbus RTU,Modbus ASCII,DNP3,IEC 60870.5 and more. Under controlled circumstances the LLM-336.Eth can even operate on multipoint networks. For multipoint operation on unconditioned copper cable,the transmitter impedance is controlled and the receiver can be switched to high impedance. Operating temperature of -13 F to 158 F. Configured by means of DIP switches.

Mulogic LLM336 Standalone Voiceband Serial Modem 12V-24Vdc internal power supply (9-36Vdc) or (100-240Vac with power adapter sold sepreratly). This Serial Modem is for Conditioned Leased Lines(Analog) or Copper Lines support full and half duplex operation modes and can be used on point-to-point and multipoint lines over a communications line(2 wire or 4 wire operation). Unique feature that makes it possible to have half duplex and multipoint operation under control of the data signals only which allows for RS232,RS422 and RS485 devices (that cannot control the RTS signal) to control the modem carrier just by sending data. RS422/485 interface. Supports Modbus RTU,Modbus ASCII,DNP3,IEC 60870.5 and more. Under controlled circumstances the LLM-336.Eth can even operate on multipoint networks. For multipoint operation on unconditioned copper cable,the transmitter impedance is controlled and the receiver can be switched to high impedance. Operating temperature of -13 F to 158 F. Configured by means of DIP switches.

Mulogic LLM336 DIN Rail Mount Voiceband Serial Modem 24V-48Vdc internal power supply (18-64Vdc) or (100-240Vac with power adapter sold sepreratly). This Serial Modem is for Conditioned Leased Lines(Analog) or Copper Lines support full and half duplex operation modes and can be used on point-to-point and multipoint lines over a communications line(2 wire or 4 wire operation). Unique feature that makes it possible to have half duplex and multipoint operation under control of the data signals only which allows for RS232,RS422 and RS485 devices (that cannot control the RTS signal) to control the modem carrier just by sending data. RS422/485 interface. Supports Modbus RTU,Modbus ASCII,DNP3,IEC 60870.5 and more. Under controlled circumstances the LLM-336.Eth can even operate on multipoint networks. For multipoint operation on unconditioned copper cable,the transmitter impedance is controlled and the receiver can be switched to high impedance. Operating temperature of -13 F to 158 F. Configured by means of DIP switches.

Mulogic LLM336 DIN Rail Mount Voiceband Serial Modem 12V-24Vdc internal power supply (9-36Vdc) or (100-240Vac with power adapter sold sepreratly). This Serial Modem is for Conditioned Leased Lines(Analog) or Copper Lines support full and half duplex operation modes and can be used on point-to-point and multipoint lines over a communications line(2 wire or 4 wire operation). Unique feature that makes it possible to have half duplex and multipoint operation under control of the data signals only which allows for RS232,RS422 and RS485 devices (that cannot control the RTS signal) to control the modem carrier just by sending data. RS422/485 interface. Supports Modbus RTU,Modbus ASCII,DNP3,IEC 60870.5 and more. Under controlled circumstances the LLM-336.Eth can even operate on multipoint networks. For multipoint operation on unconditioned copper cable,the transmitter impedance is controlled and the receiver can be switched to high impedance. Operating temperature of -13 F to 158 F. Configured by means of DIP switches.

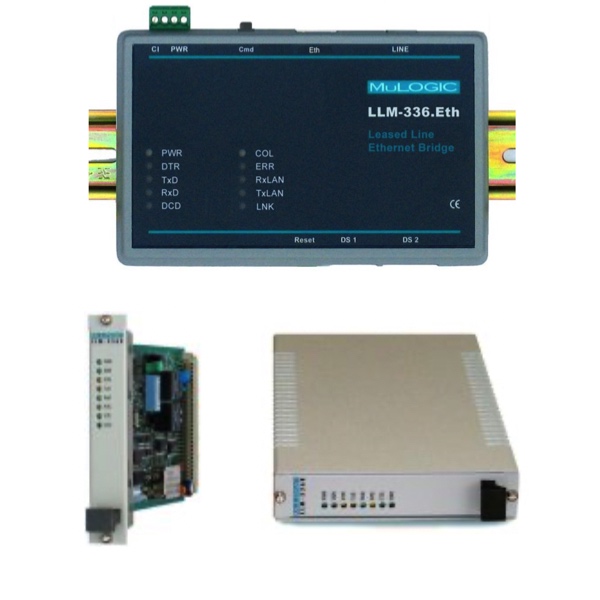

Mulogic LLM336.Eth Rack Card Voiceband Ethernet Modem 24V-48Vdc internal power supply (18V-60Vdc) or (100-240Vac with power adapter sold sepreratly). This Ethernet Modem is for Conditioned Leased Lines(Analog) or Copper Lines used to bridge Ethernet data (Layer 2) over a communications line(2 wire or 4 wire operation). Can also be used on unconditioned copper or other metallic wires and even over voice channels of radio systems. The distance between two voiceband modems is virtually without limits as long as the attenuation and noise on the voice channel remains acceptable. Ethernet port supports 10/100baseT,Auto-MDI/MDIX. Supports SCADA protocols like Modbus/TCP,DNP3/IP and IEC60870-5-104. Under controlled circumstances the LLM-336.Eth can even operate on multipoint networks. Operating temperature of -13 F to 158 F. No configuration,very easy set-up,plug and play.

Mulogic LLM336.Eth Rack Card Voiceband Ethernet Modem 12V-24Vdc internal power supply (9-36Vdc) or (100-240Vac with power adapter sold sepreratly). This Ethernet Modem is for Conditioned Leased Lines(Analog) or Copper Lines used to bridge Ethernet data (Layer 2) over a communications line(2 wire or 4 wire operation). Can also be used on unconditioned copper or other metallic wires and even over voice channels of radio systems. The distance between two voiceband modems is virtually without limits as long as the attenuation and noise on the voice channel remains acceptable. Ethernet port supports 10/100baseT,Auto-MDI/MDIX. Supports SCADA protocols like Modbus/TCP,DNP3/IP and IEC60870-5-104. Under controlled circumstances the LLM-336.Eth can even operate on multipoint networks. Operating temperature of -13 F to 158 F. No configuration,very easy set-up,plug and play.

Mulogic LLM336.Eth Standalone Voiceband Ethernet Modem 24V-48Vdc internal power supply (18V-60Vdc) or (100-240Vac with power adapter sold sepreratly). This Ethernet Modem is for Conditioned Leased Lines(Analog) or Copper Lines used to bridge Ethernet data (Layer 2) over a communications line(2 wire or 4 wire operation). Can also be used on unconditioned copper or other metallic wires and even over voice channels of radio systems. The distance between two voiceband modems is virtually without limits as long as the attenuation and noise on the voice channel remains acceptable. Ethernet port supports 10/100baseT,Auto-MDI/MDIX. Supports SCADA protocols like Modbus/TCP,DNP3/IP and IEC60870-5-104. Under controlled circumstances the LLM-336.Eth can even operate on multipoint networks. Operating temperature of -13 F to 158 F. No configuration,very easy set-up,plug and play.

Mulogic LLM336.Eth Standalone Voiceband Ethernet Modem 12V-24Vdc internal power supply (9-36Vdc) or (100-240Vac with power adapter sold sepreratly). This Ethernet Modem is for Conditioned Leased Lines(Analog) or Copper Lines used to bridge Ethernet data (Layer 2) over a communications line(2 wire or 4 wire operation). Can also be used on unconditioned copper or other metallic wires and even over voice channels of radio systems. The distance between two voiceband modems is virtually without limits as long as the attenuation and noise on the voice channel remains acceptable. Ethernet port supports 10/100baseT,Auto-MDI/MDIX. Supports SCADA protocols like Modbus/TCP,DNP3/IP and IEC60870-5-104. Under controlled circumstances the LLM-336.Eth can even operate on multipoint networks. Operating temperature of -13 F to 158 F. No configuration,very easy set-up,plug and play.

Mulogic LLM336.Eth DIN Rail Mount Voiceband Ethernet Modem 12V-24Vdc internal power supply (9-36Vdc) or (100-240Vac with power adapter sold sepreratly). This Ethernet Modem is for Conditioned Leased Lines(Analog) or Copper Lines used to bridge Ethernet data (Layer 2) over a communications line(2 wire or 4 wire operation). Can also be used on unconditioned copper or other metallic wires and even over voice channels of radio systems. The distance between two voiceband modems is virtually without limits as long as the attenuation and noise on the voice channel remains acceptable. Ethernet port supports 10/100baseT,Auto-MDI/MDIX. Supports SCADA protocols like Modbus/TCP,DNP3/IP and IEC60870-5-104. Under controlled circumstances the LLM-336.Eth can even operate on multipoint networks. Operating temperature of -13 F to 158 F. No configuration,very easy set-up,plug and play.

Mulogic DSL4608R.Eth48v Rack Card Digital Subscriber Line Ethernet Modem. Be it for connecting just two Ethernet devices, for connecting a remote Ethernet device to a LAN or even for connecting two LANs, the DSL-4608S.Eth can be used for any device equipped with an Ethernet port: from Personal Computer to PLC. Used to bridge Ethernet data over communication lines. SDSL technology for high speed (up to 4608 kbit/) point-to-point transmission on private and public dry copper wire lines. The maximum distance and data rate mainly depends on the gauge (diameter) of the copper wire. Using cable of 5 mm (AWG24) copper wire gauge,the modem has a reach of over 7.5 miles at its lower rates and will operate at a rate of 4608 kbit/s using 2 pairs of copper over distances up to 3 miles. At larger wire diameters the reach is even longer. Operating temperature of -4 F to 140 F. Automatic learning Ethernet bridge with Spanning-tree link management protocol. Protocol independent. No routing configuration needed. Configuration and control by: frontpanel,web browser,telnet connection,or serial port. The modem offers a transparent link for Ethernet protocols regardless of the higher level protocol. It is,therefore,transparent to protocols like TCP/IP,Modbus/TCP,or any protocol used over Ethernet.

Mulogic DSL4608R.Eth24v Rack Card Digital Subscriber Line Ethernet Modem. Be it for connecting just two Ethernet devices, for connecting a remote Ethernet device to a LAN or even for connecting two LANs, the DSL-4608S.Eth can be used for any device equipped with an Ethernet port: from Personal Computer to PLC. Used to bridge Ethernet data over communication lines. SDSL technology for high speed (up to 4608 kbit/) point-to-point transmission on private and public dry copper wire lines. The maximum distance and data rate mainly depends on the gauge (diameter) of the copper wire. Using cable of 5 mm (AWG24) copper wire gauge,the modem has a reach of over 7.5 miles at its lower rates and will operate at a rate of 4608 kbit/s using 2 pairs of copper over distances up to 3 miles. At larger wire diameters the reach is even longer. Operating temperature of -4 F to 140 F. Automatic learning Ethernet bridge with Spanning-tree link management protocol. Protocol independent. No routing configuration needed. Configuration and control by: frontpanel,web browser,telnet connection,or serial port. The modem offers a transparent link for Ethernet protocols regardless of the higher level protocol. It is,therefore,transparent to protocols like TCP/IP,Modbus/TCP,or any protocol used over Ethernet.

Mulogic DSL4608S.Eth48v Standalone Digital Subscriber Line Ethernet Modem. Be it for connecting just two Ethernet devices, for connecting a remote Ethernet device to a LAN or even for connecting two LANs, the DSL-4608S.Eth can be used for any device equipped with an Ethernet port: from Personal Computer to PLC. Used to bridge Ethernet data over communication lines. SDSL technology for high speed (up to 4608 kbit/) point-to-point transmission on private and public dry copper wire lines. The maximum distance and data rate mainly depends on the gauge (diameter) of the copper wire. Using cable of 5 mm (AWG24) copper wire gauge,the modem has a reach of over 7.5 miles at its lower rates and will operate at a rate of 4608 kbit/s using 2 pairs of copper over distances up to 3 miles. At larger wire diameters the reach is even longer. Operating temperature of -4 F to 140 F. Automatic learning Ethernet bridge with Spanning-tree link management protocol. Protocol independent. No routing configuration needed. Configuration and control by: frontpanel,web browser,telnet connection,or serial port. The modem offers a transparent link for Ethernet protocols regardless of the higher level protocol. It is,therefore,transparent to protocols like TCP/IP,Modbus/TCP,or any protocol used over Ethernet.

Mulogic DSL4608S.Eth24v Standalone Digital Subscriber Line Ethernet Modem. Be it for connecting just two Ethernet devices, for connecting a remote Ethernet device to a LAN or even for connecting two LANs, the DSL-4608S.Eth can be used for any device equipped with an Ethernet port: from Personal Computer to PLC. Used to bridge Ethernet data over communication lines. SDSL technology for high speed (up to 4608 kbit/) point-to-point transmission on private and public dry copper wire lines. The maximum distance and data rate mainly depends on the gauge (diameter) of the copper wire. Using cable of 5 mm (AWG24) copper wire gauge,the modem has a reach of over 7.5 miles at its lower rates and will operate at a rate of 4608 kbit/s using 2 pairs of copper over distances up to 3 miles. At larger wire diameters the reach is even longer. Operating temperature of -4 F to 140 F. Automatic learning Ethernet bridge with Spanning-tree link management protocol. Protocol independent. No routing configuration needed. Configuration and control by: frontpanel,web browser,telnet connection,or serial port. The modem offers a transparent link for Ethernet protocols regardless of the higher level protocol. It is,therefore,transparent to protocols like TCP/IP,Modbus/TCP,or any protocol used over Ethernet.
