Enclosure Door Stops

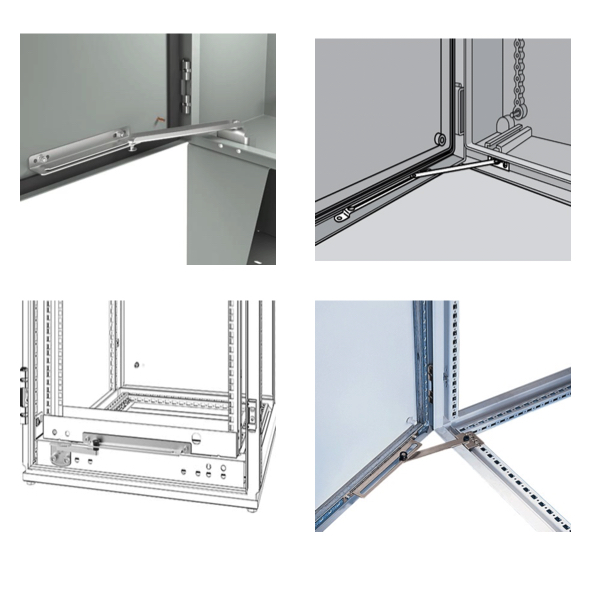

Hoffman Door Stop Kits are designed for use with most standard Hoffman Type 4 and 12 enclosures to secure the door in an open position. The enclosures must have a “B” dimension of 16 inches or more and a door which opens horizontally. Door stop kits are not intended for use on CONCEPT window door enclosures or enclosures configured with a swing-out panel or swing-out rack frame.
Hoffman Wall-Mount Enclosure Door Stop Kits are designed for use with most standard wall-mount enclosures to secure the door in an open position. The kits are Type 316 stainless steel and are ideal for applications that require corrosion protection.
Hoffman Free-Stand or Floor Mount Enclosure Door Stop Kits are designed for use with most standard free-stand and floor-mount enclosures to secure the door in a minimum of 90 degree open position. The kits can be used in outside applications and meet Telcordia GR-CORE vertical door retainer requirements for wind loading conditions. The kits are Type 316 stainless steel and are ideal for applications that require corrosion protection. They are not intended for use in free-stand or floor-mount enclosures with quarter-turn latches. The quarter-turn latches will interfere with the door stop bracket when installed.
Found 30 items
Filters
Found 30 items
Manufacturer
Hoffman (17)
Rittal (5)
Schneider Electric (8)
Component
Door Stay (9)
Door Stop (16)
Door Stop Kit (3)
Stop Arm Kit (2)
Line
Global IEC (3)
PROLINE G2 (4)
Spacial (6)
Thalassa (2)
Ultrx (1)
WM (1)
(Door Component) Finish
Mild Steel (2)
Stainless Steel (2)
Steel (3)
(Door Component) NEMA Rating
Type 12 (3)
Type 4 (4)
Type 4X (1)
Normally In Stock
nVent Hoffman ADSTOPKSS6 316 Stainless Steel Door Stop Kit
Free U.S Ground shipping
$547.30
$456.08
Normally In Stock
nVent Hoffman ALGDSTOPKSS6 Door Stop Kit for Free-Stand or Floor-Mount Enclosures
Free U.S Ground shipping
$685.67
$571.39
Normally In Stock
Rittal 1485100 Door stay for AX plastic, Ex-enclosure, plastic
Free U.S Ground shipping
$82.62
$68.85
Normally In Stock
nVent Hoffman P2ASDM ProLine G2 Door Stop Kit, Conductive, Steel
Free U.S Ground shipping
$788.24
$656.87
Normally In Stock
nVent Hoffman ESFT01 - Door Stop, Mild Steel
Free U.S Ground shipping
$1014.56
$845.47
Normally In Stock
nVent Hoffman ESFD130 - Door Stop, Mild Steel
Free U.S Ground shipping
$157.94
$131.62
Normally In Stock
nVent Hoffman UDS01 Door stop UDP left turning - Steel
Free U.S Ground shipping
$114.25
$95.21
Normally In Stock
nVent Hoffman UDS02 Door stop UDP right turning - Steel
Free U.S Ground shipping
$114.25
$95.21
Maintaining NEMA 4 Rating When Making Enclosure Penetrations
Cutouts are very common when modifying enclosures for push buttons, indication lights, conduit entries or mounting hardware. Cutting into an enclosure runs the risk of eliminating the protective nature of the NEMA rated attributes. Proper steps must be followed in order to preserve the NEMA rating of an enclosure.
Devices mounted to the enclosure must have the same NEMA rating as the enclosure. This means that if the devices are installed to the manufacturer's specifications, they will be able to maintain the NEMA rating of the enclosure.
Water tight conduit hubs must be used when running wire through a cutout in an enclosure. There are many different types of conduit hubs that are used to secure conduit to an enclosure. However, only certain conduit hubs are rated for a watertight seal. By using water tight hubs, the NEMA rating of the enclosure is maintained.
Bonded washers are necessary when mounting hardware to an enclosure. If standard mounting hardware is used, the NEMA rating of the enclosure will no longer be maintained. Bonded washers have rubber gaskets that make a watertight seal around the drilled hole. It is also important to make sure the material used for the bonded washer matches the material of the enclosure. Stainless steel enclosures require stainless steel bonded washers.
