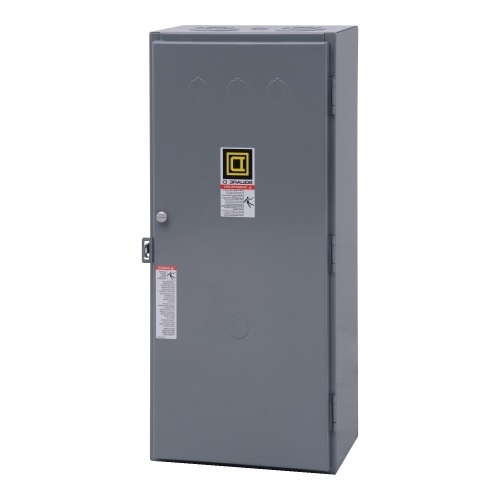

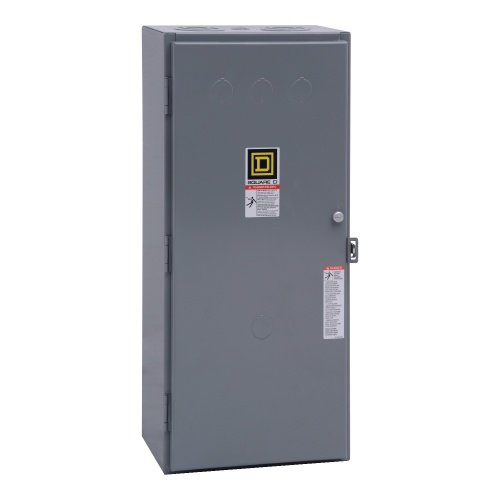

Schneider Electric 8502SFG2V02S NEMA Contactor, Type S, nonreversing, Size 4, 135A, 3 pole, 110/120 VAC 50/60 Hz coil, NEMA 1
Normally In Stock
Code: 103703
Buy Schneider 8502SFG2V02S 135 A Separate control circuit Fuse not supplied No control units Without 3P 4 120 V AC 60 Hz, 110 V AC 50 Hz Non-reversing 40 HP 200 V AC, 50 HP 230 V AC, 100 HP 460 V AC, 100 HP 575 V AC NEMA 1 painted sheet steel 3 Phase UL Listed, CSA Contactor NEMA
Condition: New
CALL FOR LEAD TIME$4640.77
Sale Price
$3867.31
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
NEMA Contactor, Type S, nonreversing, Size 4, 135A, 3 pole, 110/120 VAC 50/60 Hz coil, NEMA 1
Specifications
Starter Coil Voltage
120 VAC
Starter NEMA Size
4
Starter Enclosure Type
NEMA 1
Starter Auxiliary Contacts
Without
Starter Actions
Non-Reversing
Starter Coil Voltage
110 VAC
Starter HP
40 HP @ 200 VAC
Starter HP
50 HP @ 230 VAC
Starter HP
100 HP @ 460 VAC
Starter HP
100 HP @ 575 VAC
Component
NEMA Contactor
Sub Component
NEMA Type S Contactor
Starter Poles
Three Pole
Manufacturer
Schneider Electric
Starter Reversing Capability
Non-Reversing
Starter Amperage
135 Amp
Starter Frequency
50/60 Hz
Features
This 3 pole NEMA Size 4 non-reversing contactor has a 135 ampere rating and 120 VAC coil
Switch heating loads, capacitors, transformers, and electric motors where overload protection is separately provided
Robust design and reliable build for long mechanical life and electrical endurance
